Product Details:
|
| Name: | Lc Fiber Attenuator | Material: | Plastic |
|---|---|---|---|
| Connector: | LC | Model: | Singlemode |
| Polish: | APC | Type: | Simplex |
| High Light: | variable optical attenuator,fixed optical attenuator |
||

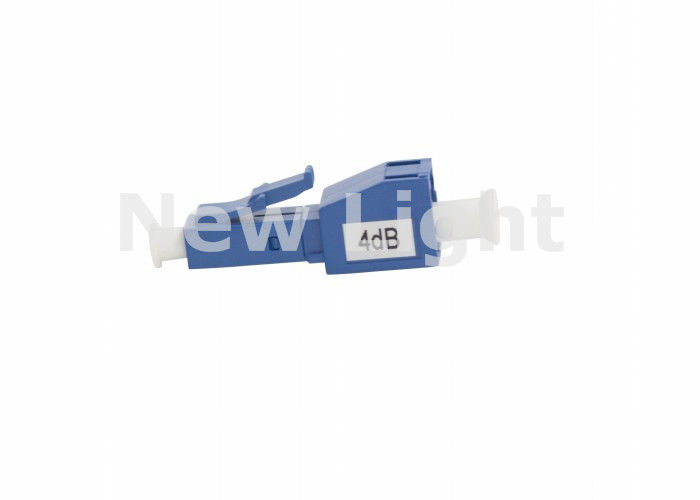

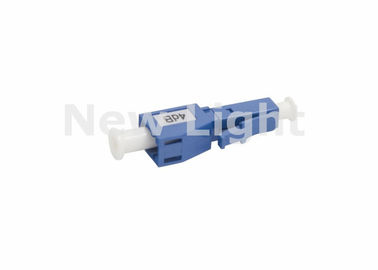

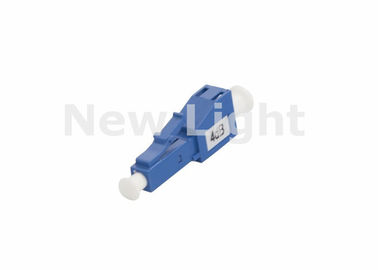

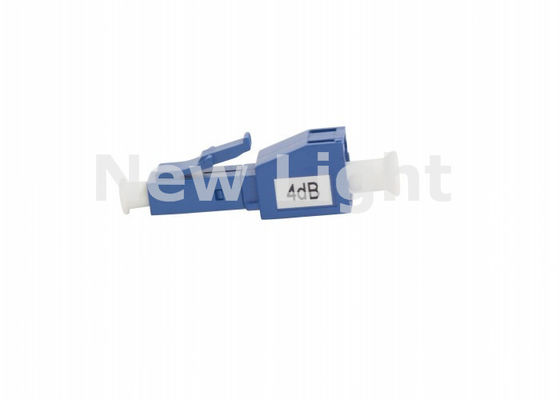

Simplex LC 4dB Optical Fiber Attenuation Singlemode For CATV blue color
Description:
Attenuator can reduce the optical signal energy of the optical passive devices,it used for optical communication systems which debug optical power performance, debugging fiber optic instrument calibration.The attenuation of the input optical power avoids the distortion of the optical receiver due to the high input optical power. We can offer different type connector include FC,SC,LC,ST,... ...ect.
Feature:
High precision
Low loss of added
Good stability characteristics
Easy to assembly
Application:
Fiber Optic communication systems
Fiber optic CATV
Fiber optic test
Testing equipment
Specification:
|
Operating wavelength: 1310/1550 ± 10 nm
|
|
Return Loss >50 dB
|
|
Tolerance for 1-5 dB Attenuation ± 0.5 nm
|
|
Tolerance for 6-30 dB Attenuation ± 10%
|
|
Polarization Dependent Loss <0.1 dB
|
|
Mechanical endurance >1000 cycle
|
|
Operating temperature -40 to +85 degree
|
