Product Details:
|
| Color: | Orange | Type: | Duplex |
|---|---|---|---|
| Material: | PVC | Fiber Type: | Duplex |
| Model: | Single Mode | OEM: | Available |
| Name: | Duplex Fiber Optic Patch Cable | ||
| High Light: | simplex fiber optic cable,fiber optic drop cable |
||

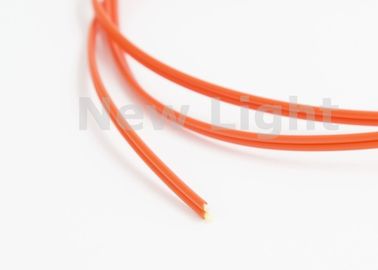

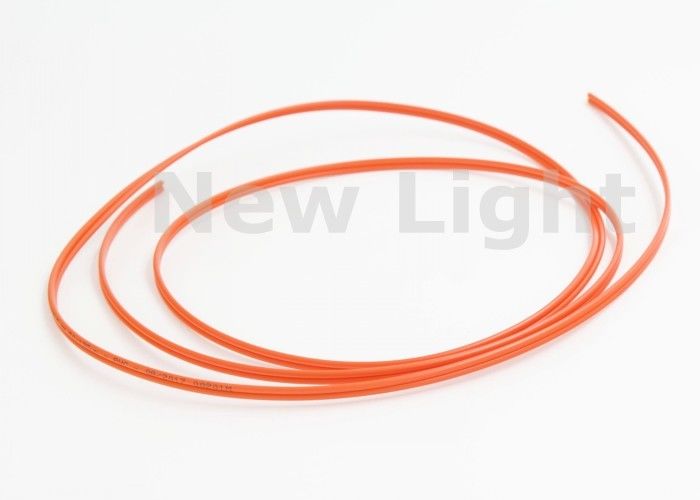

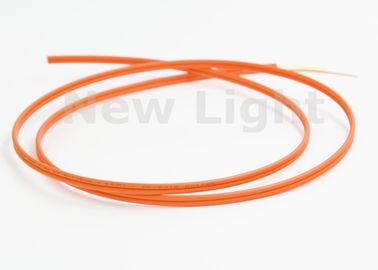

3.0mm Indoor Duplex Fiber Optic Patch Cord With Inflaming Retarding Orange color
Description
Splayed indoor optical fiber cable used for communication with non-metallic stiffening member, tight coat and PVC, LSZH, OFNR, OFNP outer sheath.
Duplex twin flat optical fiber cable is manufactured by two pieces of single-core tight-coated optical fiber cable.
Feature:
Light weight,flexibility, inflaming retarding,
easy stripping. So it Is easy to installation,
maintenance and manage.
Application
Used for pigtails and jumpers;
Used for connection of optical instruments and communications equipments;
Used for indoor wiring.
Parameters:
| Cable code |
Cable size Mm |
Cable weight kg/km | TBF diameter µm | Tensilse strength long/short term N | Crush Resistance long/short term N | Bending Radius Dynamic/Static mm | |
| GJFJBV | 3.0mmx2 | PVC jacket | LSZH jacket |
900±50 |
100/200 |
300/1000 |
60/30 |
| 13.1 | 16.5 | ||||||
