Product Details:
|
| Color: | Yellow Cable,green Connector | Connector Type: | SC |
|---|---|---|---|
| Polish: | UPC | Spliter: | PLC |
| Mode: | Single Mode | OEM: | Available |
| High Light: | single mode fiber splitter,fiber optic cable splitter |
||

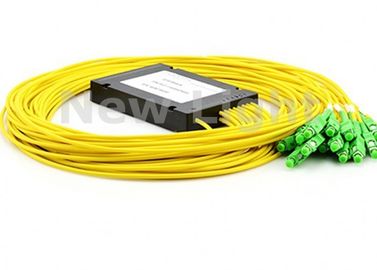

1×16 Optical PLC Splitter single mode cable with SC/UPC connectors
Specifications
Fiber To The Home (FTTH)
Passive Optical Networks (PON / GPON / EPON )
CATV Network (Cable Television Network) Communication Systems
Fiber Optic Test Equipment
Fiber Optic Sensing
Local Area Networks (LAN)
Excellent Environmental
Features
ALL fiber construction
High Reliability
Outstanding Optical Performance
Different Fiber Types Available
Performance
| Parameter | Unit | Premium | A | B | ||
| Operating Wavelength | nm | 1310±20, 1550±20 /1310±40, 1550±40 or Others | ||||
| Excess Loss | Typ. | dB | 0.1 | |||
| Polarization Stability | Max | dB | 0.1 | 0.1 | 0.15 | |
| Uniformity (50:50) | Max | dB | 0.6 | 0.8 | 1.0 | |
| Thermal Stability | Max | dB | 0.2 | 0.3 | 0.4 | |
| Directivity | Min | dB | 50 (1x2), 60 (2x2) | |||
| Reflectance | Min | dB | 50 (1x2), 60 (2x2) | |||
| Operating Temperature | °C | -30 ~ 85 | ||||
| Storage Temperature | °C | -40 ~ 85 | ||||
|
Insertion Loss
|
50/50 | Max | dB | 3.3/3.3 | 3.4/3.4 | 3.6/3.6 |
| 45/55 | 3.8/2.9 | 3.9/3.0 | 4.0/3.1 | |||
| 40/60 | 4.3/2.5 | 4.4/2.6 | 4.6/2.7 | |||
| 35/65 | 4.9/2.1 | 5.0/2.2 | 5.2/2.3 | |||
| 30/70 | 5.6/1.8 | 5.7/1.85 | 5.9/1.9 | |||
| 25/75 | 6.4/1.45 | 6.5/1.55 | 6.7/1.6 | |||
| 20/80 | 7.4/1.15 | 7.5/1.2 | 7.7/1.3 | |||
| 15/85 | 8.7/0.9 | 8.8/0.95 | 9.0/1.0 | |||
| 10/90 | 10.5/0.6 | 10.6/0.7 | 10.8/0.8 | |||
| 5/95 | 13.7/0.35 | 13.8/0.4 | 14.0/0.5 | |||
| 1/99 | 21.0/0.15 | 21.3/0.2 | 21.6/0.25 | |||
