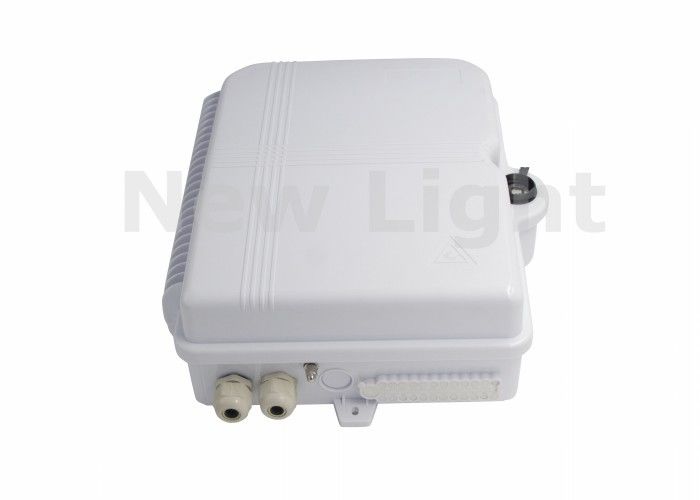

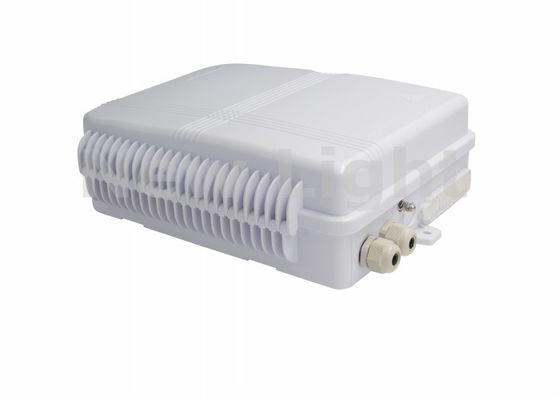

Withe Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area

Withe Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area

    • Withe Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area
    • Withe Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area
  • Withe Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area

    Product Details:

    Place of Origin: China
    Brand Name: New Light
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiate
    Packaging Details: 1 piece per pack
    Delivery Time: within 2 weeks
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Color: White Material: ABS,PC
    Core: 8 Name: Splitter Box
    OEM: Avalaible

    Fiber Optic Terminal Box SC 48 Port wall box For Local area withe color







    Description:



    Optic drop cable terminal box is widely used as a termination point for the feeder cable to connect with drop cable.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the fttx network building. It can be used indoor and outdoor.







    Features:


    ·*Standard size, light weight and reasonable structure
    *Material: ABS, wet-proof,water-proof,dustproof anti-aging,protection level up to IP65
    *Clamping for feeder cable and drop cable Cable,
    * pigtails, patch cords are running through own path without disturbing each other
    *Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for
    maintenance and installation.
    * Can be installed by the way of wall-mounted, suitable for both indoor and outdoor uses.
    * Suitable for SC/FC/ST/LC adapters

    Application:


    Telecommunications subscriber loop
    Fiber to the home (FTTH)
    LAN/WAN
    CATV



    Parameters:


    Max. Capacity : 48 Fiber (2pcs 24FO trays)
    Dimension : 380x355.8x140.5mm
    Splitter: Load 1pc 1*32 ABS box type splitter;
    (If delete the space for splitter,
    max.can load 3pcs splice trays for 72
    fibers splicing. )Withe Color Fiber Optic Termination Box SC 48 Port Wall Box For Local Area
