Product Details:
|
| Name: | SC SC Fiber Patch Cord | Diameter: | 2.0mm |
|---|---|---|---|
| Fiber Type: | Simplex | Connector: | SC-SC |
| Color: | Yellow | Length: | 3 Meter |
| High Light: | fiber optic pigtail,single mode fiber jumpers |
||

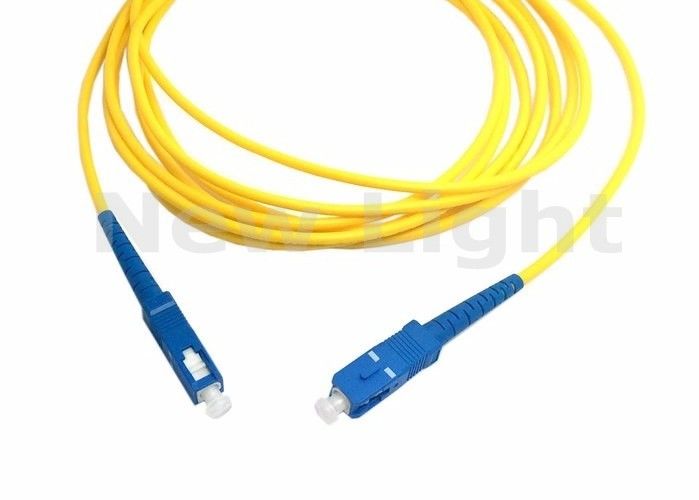

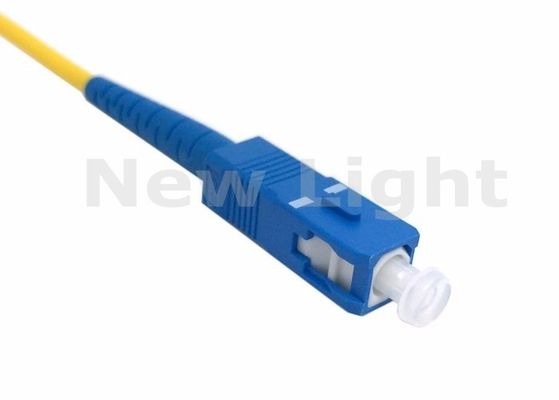

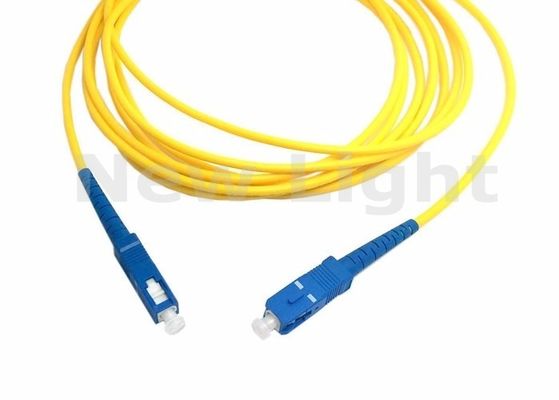

SC to SC Fiber Patch Cord Jumper Cable SM Simplex Single Mode Optic for Network 3 meters
Mechanical properties
Interchangeability (dB): ≤ 0.1
Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)
Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)
The high temperature ≤ 0.2dB (+85 ° C for 50 hours)
Low temperature ≤ 0.2dB (-40 ° C for 50 hours)
Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)
Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)
Description:
Connectors: SC to SC
Core: Single Mode Fiber
Density: Simplex
Finish/Size: PC Polish
Application:
Signal transmission and data transmission
Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems
Fiber optic test equipment / instrumentation
Optical fiber CATV (cable television), optical fiber sensors
Fiber-optic broadband-home, FTTH fiber to the home
Fiber optic patch panels, rack and wall mount fiber optic wiring unit
Ordering Options:
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
Type:
* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
Specification:
| Connector | SC to SC | Jacket OD | 2.0mm |
| Fiber Mode | 9/125µm | Jacket Color | Yellow |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~70℃ | Storage temperature | -45~85℃ |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |
Features
* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
