Product Details:
|
| Name: | SC-FC Fiber Patch Cord | Diameter: | 2.0mm |
|---|---|---|---|
| Model: | Single | Connector: | SC-FC |
| Color: | Yellow | Length: | 3 Meters |
| High Light: | fiber optic pigtail,ftth fiber optic cable |
||

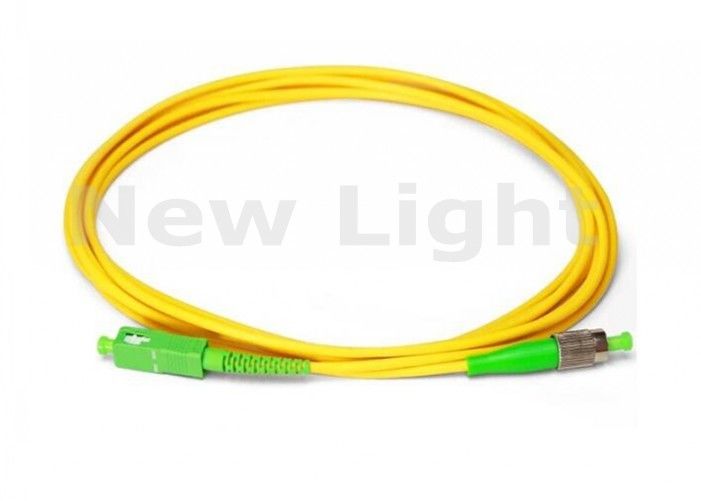

3M SC-FC APC Simpex single-mode fiber optic patch cord cablle SC-FC 2.0mm 3.0mm FTTH fiber optic jumper
Product Packing Details:
| Inner packing | 1 piece per plastic bag |
| Min order | 100 pcs |
| 100 pcs Gross weight | 2-3kg |
| Outer packing | Carton box |
Features
* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
Application:
* Telecommunication networks
* Video
* Gigabit Ethernet
* Active device termination
* Multimedia
* Premise installations
* FTTH TTX applications
* Local area networks
* CATV
Specification:
| Model NO. | Fiber Optic Patch Cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Simplex/Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Description:
Fiber Optic Patch cord is necessary part of optical network. They have some or different connectors which are installed on the end of fiber optic cable. The fiber optic patch cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for different requirements.
Parameters:
| Connector | SC to FC | Jacket OD | 2.0mm |
| Fiber Mode | 9/125µm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75℃ | Storage temperature | -45~85℃ |
| Polarity | A(Tx) to B(Rx) | Fiber Grade |
G652D |
