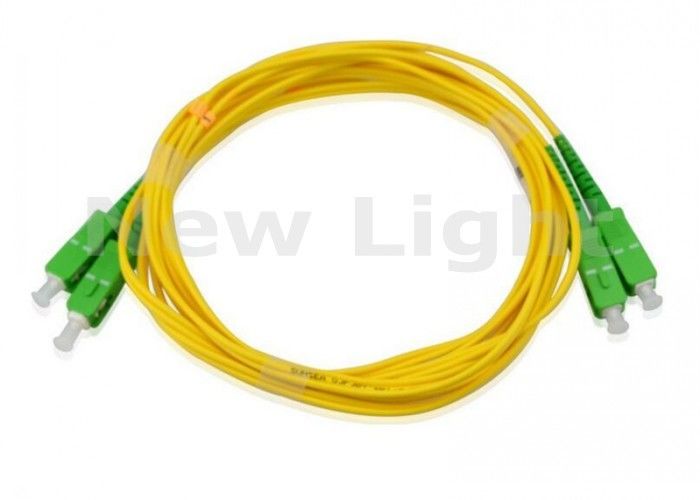

FTTH SC APC Patch Cord , 2.0mm / 3.0mm Single Mode Duplex Fiber Optic Cable

FTTH SC APC Patch Cord , 2.0mm / 3.0mm Single Mode Duplex Fiber Optic Cable

FTTH SC APC Patch Cord , 2.0mm / 3.0mm Single Mode Duplex Fiber Optic Cable

Product Details:

Place of Origin: China
Brand Name: NewLight
Certification: IS09001-2008.ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: SC SC Fiber Patch Cord Diameter: 2.0mm
Model: Single Connector: SC-SC
Color: Yellow Length: 3 Meter

SC APC 3M Single mode duplex fiber optic patchcord cable SC 2.0mm or 3.0mm FTTH fiber optic jumper cable







Specifications



Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤2 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥550 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9





Characteristics

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored





Features

Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC





Applications


CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications





FTTH SC APC Patch Cord , 2.0mm / 3.0mm Single Mode Duplex Fiber Optic Cable
