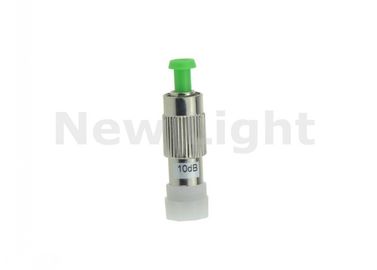

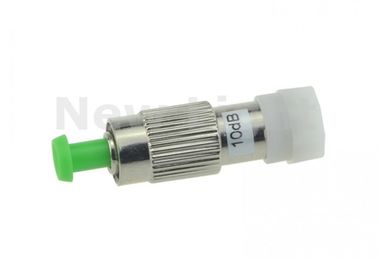

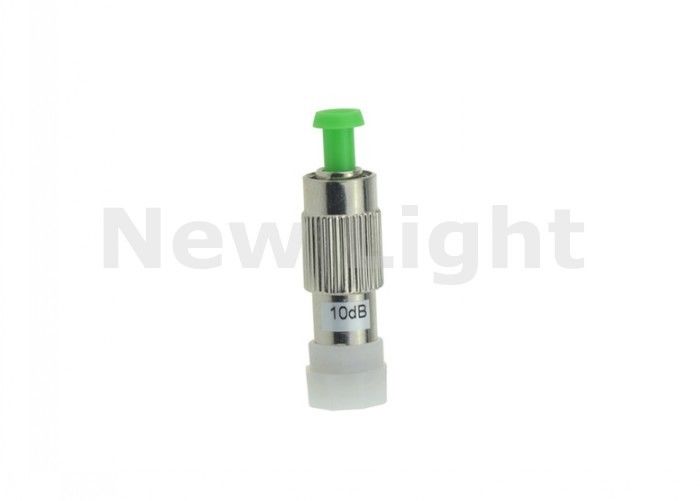

FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization

FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization
FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization
FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization

Large Image :  FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization

Product Details:
Place of Origin: China
Brand Name: New Light
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: 10pcs per pack
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000/month

FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization

Description
Color: Green Connector: FC
Polish: APC Mode: Single Mode
Attenuator: 5dB Material: Metal,plastic
High Light:

variable optical attenuator

,

fixed optical attenuator

FC APC female to male 10dB fiber optic Attenuator FC APC 10db female male Fiber Optic Attenuator





Quick details:



FC/APC 10dB Fixed Fiber Optical Attenuator
1-30dB is available
Good quality
Best price
Fast delivery
FC/APC 10dB Fixed Fiber Optical Attenuato



Features:


High power 1W continuous operation tested over 1000 hours
Precise attenuation
Return loss UPC >50 dB APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB

Applications:


Fiber optic systems
CATV and telecommunication systems
Receiver padding for optical receiver protection
Optical power equalization
Increasing dynamic range for apparatus


SC/APC Attenuator Dtail:


We offers an extensive line of dual wavelength (1310/1550nm) Singlemode fiber optic attenuators. These versatile in-line attenuators are the perfect solution for attenuating Singlemode fiber connectors for both lab and commercial applications. Constructed of the highest quality materials and factory tested, this series offers the widest array of connector styles and polish types.







Specification:





Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
Premium
Return Loss UPC >55dB
APC >65dB

Attenuation

Accuracy

1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40 to 75
Storage Temperature Range -40 to 85
Humidity 95%RH






FC APC Female To Male 10db Attenuator Green Color For Optical Power Equalization 0



FAQ

1. Are you the real factory?
Yes we are the real factory with 16 years history

2. What is your fiber brand?
Fiber brands including YOFC FiberHome , US Corning brand ,Taiwan Brand

3. What is your main products?
Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords

4. Product quality guarantee period?
20 years Guarantee for fiber optic cable



5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products

7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds

8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered

9. Payment
For large orders: T/T
For small orders: T/T and Paypal are acceptable

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
