Product Details:
|
| Color: | Blue,White | Material: | Plastic |
|---|---|---|---|
| Connector: | SC-LC | Model: | Singlemode |
| Polish: | UPC | Name: | Fiber Sc To Lc Adapter |
| High Light: | sc simplex adapter,lc fiber optic adapter |
||

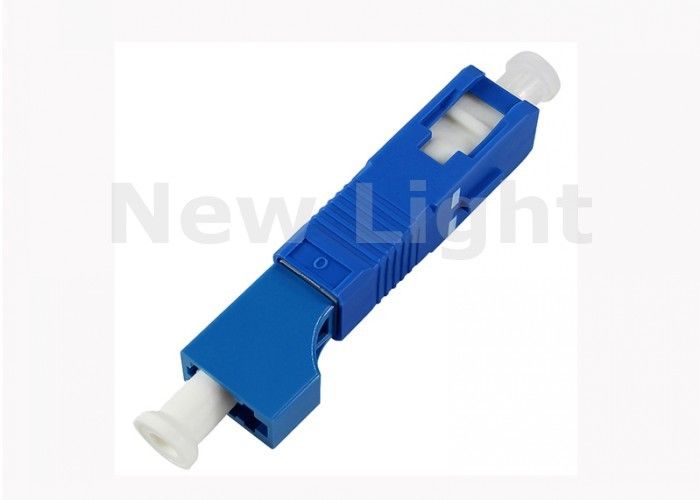

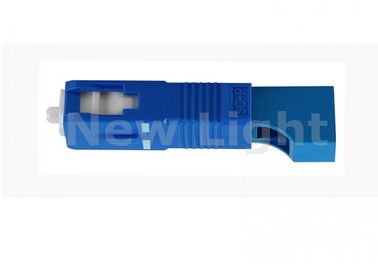

Local area networks use SC-LC adapter SC to LC Optical fiber adapter Turn round square flange SC-LC adapter
Quick details:
Insertion loss: less than 0.20db
Repeatability: less than 0.10
Interchangeability: less than 0.20
Sleeve material: imported ceramics
Work temperature: -40 ~ +80 (c)
Storage temperature: -40 ~ +85 (c)
Application:
*Telecom network
*CATV
*Optical test equipment
*Local area networks
*Wide area networks
*Data processing Networks
Reliability test condition:
| Continuous collision (4000) into the change | less than or equal to 0.2dB = 45dB reflection |
| Drop test | insert change = 0.2dB = 45dB reflection |
| Bending test | insert change = 0.2dB = 45dB reflection |
| Twisting test | insert change = 0.2dB = 45dB reflection |
| Durability test | insert change = 0.2dB = 45dB reflection |
| Tensile Test | insert changes less than 0.2dB reflection over 45dB |
| Fitting resistance | 200-400gf |
| Vibration test | insert change = 0.2dB = 45dB reflection |
| Salt spray test | insert change = 0.2dB = 45dB reflection |
| Thermal shock test | insert change = 0.2dB = 45dB reflection |
| Operating temperature | -20 ~ +70 degree |
| Storage temperature | -40 ~ +70 degree |
Feature:
Low insertion loss value
Good interchangeability
Good reusability
Tolerate high temperatures
Tolerate Acid and alkali
Stable performance
Excellent mechanical capability
