Product Details:
|
| Name: | SC Square Tail Set | Connector: | SC |
|---|---|---|---|
| Diameter: | 2.0/3.0mm | Color: | Grey Or Customized |
| Mode: | SM/MM | OEM: | Available |
| High Light: | fiber optic accessories,fiber optic cable assembly |
||

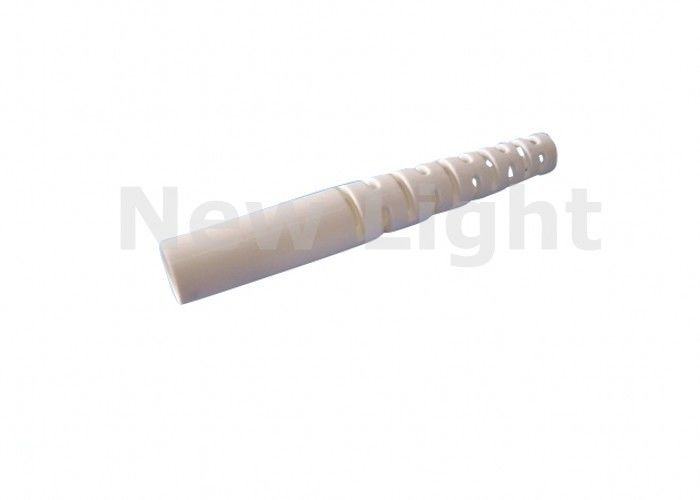

Fiber patch cord use SC square tail set 2.0 / 3.0 mm diameter Grey color
Description
Fiber Optic Connectors are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard. The performance of the Fiber optic connector has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.
Ferrule Hole Sizes
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
Features:
1. Accurate mechanical dimensions
2. Low insertion loss,high return loss
3. Excellent compatibility
4. Excellent repeatability
5. No polishing,no Epoxy
6. More convenient to install
7. Life time: at least 1 year
Application:
* Optical fiber communication system
* Optical fiber test equipment
* Optical fiber access network
* Optical fiber sensor
* Optical fiber CATV system
* Optical fiber data transmission
* Local area network
Specification:
|
Parameter |
Unit |
LC,SC,FC,ST,MTRJ,MOP | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -40~85 | |||
