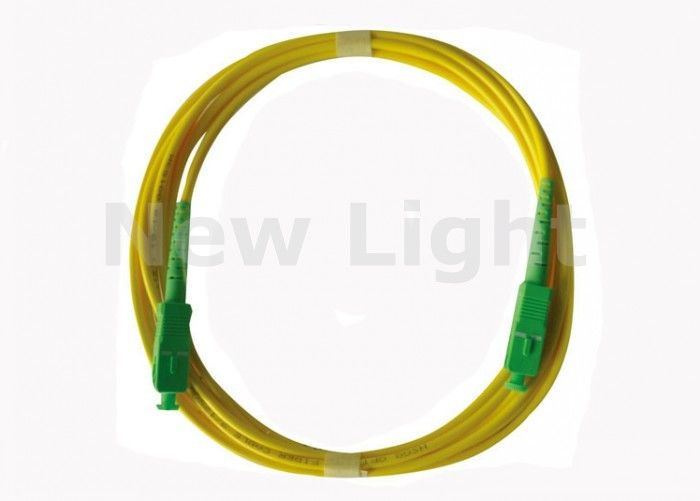

Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length

Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length
Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length
Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length

Large Image :  Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length

Product Details:
Place of Origin: China
Brand Name: NewLight
Certification: IS09001-2008.ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month

Easy Instalation SC TO SC Fiber Patch Cable Single Model 3.0mm Diameter 1 Meter Length

Description
Name: SC SC Fiber Patch Cord Diameter: 3.0mm
Fiber Type: Simplex Connector: SC-SC
Color: Yellow Length: 3 Meter
High Light:

fiber optic pigtail

,

ftth fiber optic cable

SC/UPC to SC/UPC Fiber Optic Jumper cables diameter 3.0mm 1 meter length Single model





Quick details:



1. SC Optic Fiber Patch Cord/Pigtail
2. Simplex,duplex.Mode:SM,MM
3. Polishing:PC/UPC/APC
3. 100%test,good quality,fast delivery
Description:SC Optic Fiber Patch Cord/Pigtail
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss.They come with your choice of simplex or duplex cable configuration and are made to conform to IEC,Telcordia GR-326-CORE Standard.


Environmental Reliability Test


The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others


Key Features




1. Low insertion/return loss
2. Various connector types available
3. Easy instalation
4. Environmentally stable




Availabilities&Ordering:




1.Full specifications, FC, SC, ST, LC, MTRJ etc.
2.Simplex and Duplex assemblies available
3.Singlemode and multimode available
4.PC, UPC and APC polishing available
5.PVC and LSZH outer sheath.
6.0.9mm, 2.0mm and 3.0mm cable size
7.Hybrid patch cords are available upon request
8.Fan-out available (Ribbon/ bundle)
9.Pigtail available
10.Loopback available
11.Customized length





Mechanical properties



Interchangeability (dB): ≤ 0.1

Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)

Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)

The high temperature ≤ 0.2dB (+85 ° C for 50 hours)

Low temperature ≤ 0.2dB (-40 ° C for 50 hours)

Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)

Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)



Application:



Signal transmission and data transmission

Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems

Fiber optic test equipment / instrumentation

Optical fiber CATV (cable television), optical fiber sensors

Fiber-optic broadband-home, FTTH fiber to the home

Fiber optic patch panels, rack and wall mount fiber optic wiring unit





Ordering Options:





Connector type SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc
Polish UPC,APC,PC
Cable type Simplex,Duplex straight,Duplex Reverse
Fiber SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655)
Cable Jacket Riser,Plenum,LSZH
Cable Diameter 3.0mm,2.0mm,0.9mm,etc
Cable Length Length in meter



Type:



* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.

* Ferrule endface: PC,UPC,APC,etc.

* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.

* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.

* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.





Specification:



Connector SC to SC Jacket OD 3.0mm
Fiber Mode 9/125µm Jacket Color Yellow
Polish UPC to UPC Wavelength 1310/1550nm
Fiber Type Simplex Jacket Material PVC
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~70℃ Storage temperature -45~85℃
Polarity A(Tx) to B(Rx) Fiber Grade G652D
