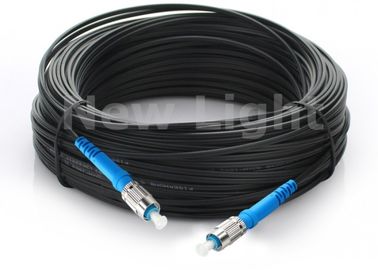

200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable

200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable
200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable
200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable 200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable

Large Image :  200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: NewLight
Certification: IS09001-2008.ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month

200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable

Description
Name: FC-FC Fiber Patch Cord Diameter: 2.0mm
Fiber Type: Duplex Connector: FC-FC
Color: Black Length: 200 Meter
High Light:

fiber optic pigtail

,

ftth fiber optic cable

200M Outdoor FC/UPC-FC/UPC FTTH Drop Patch Cable Singlemode Simplex G657A Black color






Specification




Insertion loss: ≤ 0.3dB
Return loss:≥55dB
Durability; ≥1000 times
Operating temperature; -40~+80°
Working wavelength:1310-1550nm





Feature


Suitable for telecommuniction networks
Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,E2000,DIN
High durability and reliability
Low insertion loss and high return loss
Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available







Description


The SC fiber optic cable is available in both single mode and multimode versions, and is fully intermateable with NTT-SC products. Both single mode and multimode versions SC fiber patch come with a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.







Ordering options

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored





Mechanical properties



Interchangeability (dB): ≤ 0.1

Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)

Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)

The high temperature ≤ 0.2dB (+85 ° C for 50 hours)

Low temperature ≤ 0.2dB (-40 ° C for 50 hours)

Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)

Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)



Application:



Signal transmission and data transmission

Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems

Fiber optic test equipment / instrumentation

Optical fiber CATV (cable television), optical fiber sensors

Fiber-optic broadband-home, FTTH fiber to the home

Fiber optic patch panels, rack and wall mount fiber optic wiring unit





Ordering Options:





Connector type SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc
Polish UPC,APC,PC
Cable type Simplex,Duplex straight,Duplex Reverse
Fiber SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655)
Cable Jacket Riser,Plenum,LSZH
Cable Diameter 3.0mm,2.0mm,0.9mm,etc
Cable Length Length in meter



Type:



* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.

* Ferrule endface: PC,UPC,APC,etc.

* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.

* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.

* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.







200M Outdoor Fiber Optic Jumper Cables Singlemode Simplex G657A FC FC Fiber Optic Cable 0
