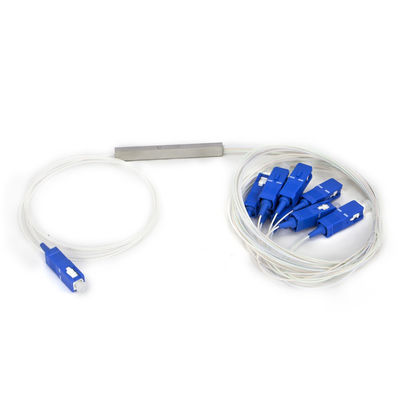

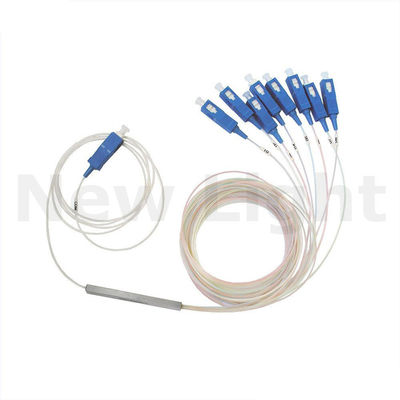

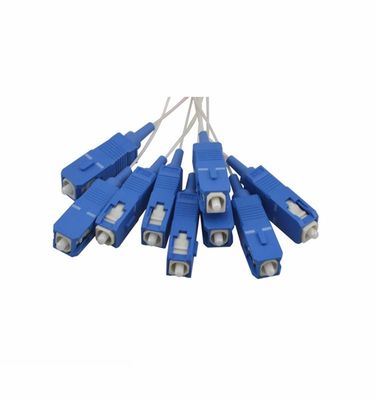

1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks

1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks

    • 1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks
    • 1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks
    • 1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks
  • 1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE , ISO ,RoSH
    Model Number: LC / FC / SC / FC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: foam + carton box
    Delivery Time: 2-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Brand Name: New Light Fiber Type: 0.9 /2.0 / 3.0 Mm
    Connector Type: LC / FC / SC / ST Core Type: 1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64
    Operating Wave: 1260-1650 Mode Type: Single Mode
    OEM / ODM: Acceptable Fiber Length: As Your Requirement
    Warranty: 5 Years Delivery Time: 2-10 Working Days After Receive Payment
    Payment: T/T , L/C , Paypal , Westen Union , Money Gram

    1x16 / 1x32 fiber optic splitter SC / LC / FC optical fiber 1×N PLC Splitter





    Description



    Product Description



    Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.







    Product specification:



    Parameters 1×2 1×4 1×8 1×16 1×32 1×64
    Operating Wavelength (nm) 1260~1650
    Fiber Type SMF-28e or customer specified
    Insertion Loss (dB)(S/P Grade) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
    Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
    Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55 50/55
    Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.3 0.4
    Directivity (dB) 55 55 55 55 55 55
    Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
    Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
    Operating Temperature (°C) -40~85
    Storage Temperature (°C) -40~85
    Packaging Dimension (mm) (L×W×H) 40×4×4 40×4×4 40×4×4 40×4×4 50×7×4 60×12×4



    Notes:



    1. Specified without connectors.



    2. Add an additional 0.2dB loss per connector







    Application:



    1) FTTX Systems



    2) PON Networks



    3) CATV Links



    4) Optical Signal Distribution



    5) Local Areal Networks (LAN)



    6) Fiber Communication Systems



    1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks







    Key features:



    1) Low Insertion loss



    2) Low PDL



    3) Compact Design



    4) Good channel-to-channel uniformity



    5) Wide Operating Wavelength: 1260-1650nm



    6) Wide Operating Temperature: -40°C - 85°C



    7) High Reliability and Stability







    1×N Fiber Optic PLC Splitter / Optical Cable Splitter For Local Area Networks
