1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

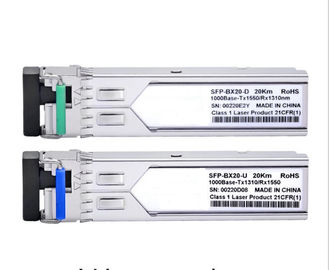

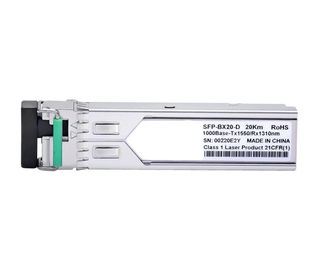

1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation

1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation
1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation 1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation

Large Image :  1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation

Product Details:
Place of Origin: Shenzhen, China
Brand Name: NEW LIGHT
Certification: CE , ISO , RoHS
Model Number: MPO / MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + plastic box + carton box
Delivery Time: 2-7 working days ( depends on your quantity )
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Supply Ability: 20000 pcs per month

1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation

Description
Mode Type: Single Mode Speed: 10/100/1000M
Data Rate: 2.5G/1.25G Certificate: CE , ISO ,RoHS TUV , EMC
Distance: 20KM Wavelength: 1310 / 1550nm
Power: -3-9dBM Warranty: 3 Years
Operating Temperature: 0-70 Application: FTTH / FTTB / FTTX
High Light:

gigabit ethernet transceiver

,

single mode fiber transceiver




1.25 G single mode SFP fiber optic transceiver 20KM distance



Product Features

1. Up to 1.25 Gb/s bi-directional data links
2. Hot-pluggable SFP footprint
3. Low power dissipation(1.05W typical)
4. Compact RJ-45 connector assembly
5. Fully metal enclosure, for lower EMI
6. RoHS compliant and lead-free
7. Single +3.3V power supply
8. 1.25 Gigabit Ethernet over Cat 5 cable
9. 10/100/1000 BASE-T operation in host systems with SGMII interface

10.Case operating temperature:
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C

Product Applications

  • Gigabit Ethernet/Fast Ethenet
  • Fiber Channel
  • SDH/SONET/ATM
  • Switch to Switch interface
  • Router/Server interface
  • Other optical transmission systems

1.25 G Single Mode Fiber Optic Transceiver Module 20KM Distance Low Power Dissipation 0

Product Descripition


TRANSCOM’S TS-SF-T12-02-2 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-Tphysical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The TS-SF-T12-02-2 is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).



Brand HDV, OEM
Place of origin China
Condition New
Form Factor SFP
Wavelength: 1310/1550nm
Distance 20KM
Data Rate (max) 1.25G
Low End Case Temperature (°C) 0°C


High End Case Temperature (°C)

70°C
Voltage Supply 3.3--5v
Connector LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 2-4 working days
Package 10 pcs/box
