Product Details:
|
Brand Name: | New Light | Fiber Type: | 2.0/3.0 |
---|---|---|---|
Connector Type: | LC / FC / SC / ST / E2000 | Operating Wave: | 1260-1650 |
Mode Type: | Single Mode | OEM / ODM: | Acceptable |
Fiber Length: | 1.5 M ( As Your Requirement ) | Warranty: | 3 Years |
Delivery Time: | 2-10 Working Days After Receive Payment | Payment: | T/T , L/C , Paypal , Westen Union , Money Gram |
Products Name: | 1 / 2 X 8 SC / UPC Fiber Optic Splitter / FWDM 2.0 / 3.0 Um 1.5 M For CATV | ||
High Light: | fiber optic plc splitter,fiber optic cable splitter |

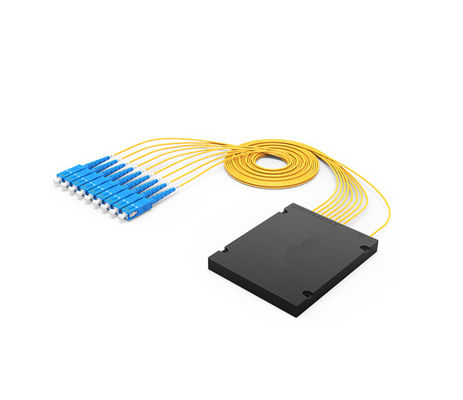

1 / 2 x 8 SC / UPC Fiber Optic Splitter / FWDM 2.0 / 3.0 um 1.5 M for CATV
2x8 PLC Splitter divides or combines 2 signal input to 8 outputs.
Planar splitters are passive components that split optical signals into optical fibers. They have a low insertion loss and due to the compact design, they can be installed perfectly in sleeves, CVT's or ODF's. You are using so-called PON (passive optical networks) fiber optic networks to split a fiber according to the split factor. This allows you to transfer up to 64 ports via one fiber.
Quick detail:
Split ratio: 2:8
Type: mini module PLC Splitter (mini steel tube package)
Input/output pigtail: 0.9mm, 1m or 1.5m length
Input/output connector: SC/UPC or SC/APC connector, LC connector are available
Fiber type: Singlemode G657A1
Wavelength: 1260~1650nm
Feature:
4. Compliance
Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14 | 16.8 | 20.8 |
Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
Channel Uniformity (dB) | 1 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | |
WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 | |
TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | |
Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80(L)X20(W)X6(H) | ||||
RL (dB) | > 50dB | ||||||
Directivity (dB) | > 55dB | ||||||
Fiber Type | G652D | ||||||
Operating Temperature Range | -40ºC ~ 85ºC |
Order information
PLC Splitter Type-----Input/Output Count-----Input Connector Type-----Input Tube Type------Input Tube Length------Output Connector Type-----Output Tube Type-----Output Tube Length
Packing
preferred carrier, please notify us in advance.
Delivery and payment
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
