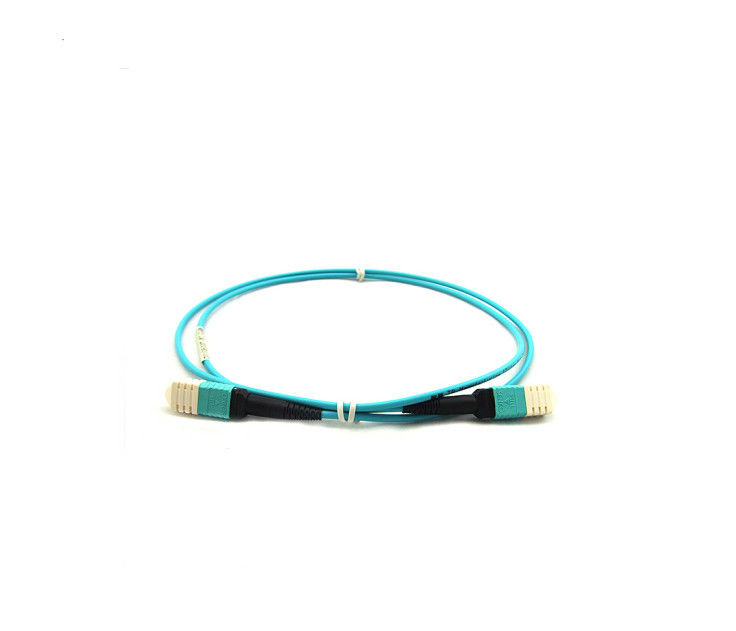

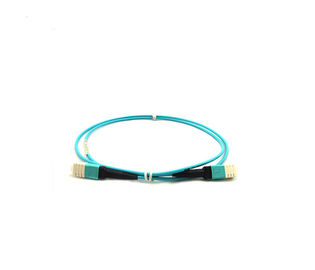

10 Ft MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers

10 Ft  MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers
10 Ft  MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers
10 Ft  MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers 10 Ft  MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers 10 Ft  MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers

Large Image :  10 Ft MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers

Product Details:
Place of Origin: Shenzhen, China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + Carton box
Delivery Time: 2-7 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram , Paypal
Supply Ability: 500 pcs per day

10 Ft MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers

Description
Material: PVC / LSZH Connector Type: MPO / MTP Male And Female
Mode: Single / Multi Mode Delivery Time: 2-7 Days After Receive Payment
Production: 500 Pcs Per Day Length: 3 M (as Your Requirement )
Shipping Term: By Sea Or By Air Fiber Cord: 8 Core
Products Name: 10 Ft ( 3M ) MPO MTP Cable Patch Cord TYPE B 8-core Fibers For QSFP+Transceivers Cable Diameter: 3.0 / 3.6 Mm
High Light:

mpo fiber cable

,

mpo to mpo cable









10 ft ( 3M ) MPO MTP cable Patch Cord TYPE B 8-core Fibers for QSFP+Transceivers



Description





multi-mode MPO products are multifiber connectors used in high-density backplane and
Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO
stander is fully compatible with MTP stander, offers up to 12 times the density of standard
connectors, such as LC/SC/FC etc. MPO/MTP patch cord providing sinificant space and cost
savings.
MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precise
housing dimensions to ensure fiber alignment when mating. The MPO can be mass
terminated in combination of 4, 8, 12 or 24 fiber ribbon cables.




Compatible for :

Cisco QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40F-CSR4
Extreme 40GB-ESR4-QSFP
Juniper QFX-QSFP-40G-SR4 and QFX-QSFP-40G-ESR4.
Brocade 40G-QSFP-SR4.
Arista QSFP-40G-SR4 and QSFP-40G-XSR4.
Hawei QSFP-40G-ISR4 and QSFP-40G-eSR4.
H3C JG325A,JG325B and JG709A







Feature

  • 【High Speed and High Density】 MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process
  • 【TYPE B & IEEE802BM】MMF(50/125um), OM3 10G standard, LSZH sheet, 8-core fibers cable, constructed with TYPE B (Chanel 1 to Chanel 12)
  • 【High-performance for Your Datacenter】IL at 850nm 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ transceivers
  • 【No Doubt About Quality】High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
  • 【Better Get It Here】The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies



Specification:

Item Single Mode Multimode
Insertion Loss ≤0.2dB
Return Loss ≥50dB(PC); ≥65dB(APC)
Repeat-ability ≤0.1
Durability ≤0.2dB typical change 1000matings
Interchangeability ≤0.2dB
Operating Temperature - 40℃ to +85℃ - 40℃ to +85℃







10 Ft  MPO MTP Cable Patch Cord Type B 8 Core Fibers For QSFP + Transceivers 0



Packing & Labeling





The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or our lable are available
Inner packing: 5pcs in one carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation: By air ,by sea ,by DHL ,Fedex TNT ,UPS ...
