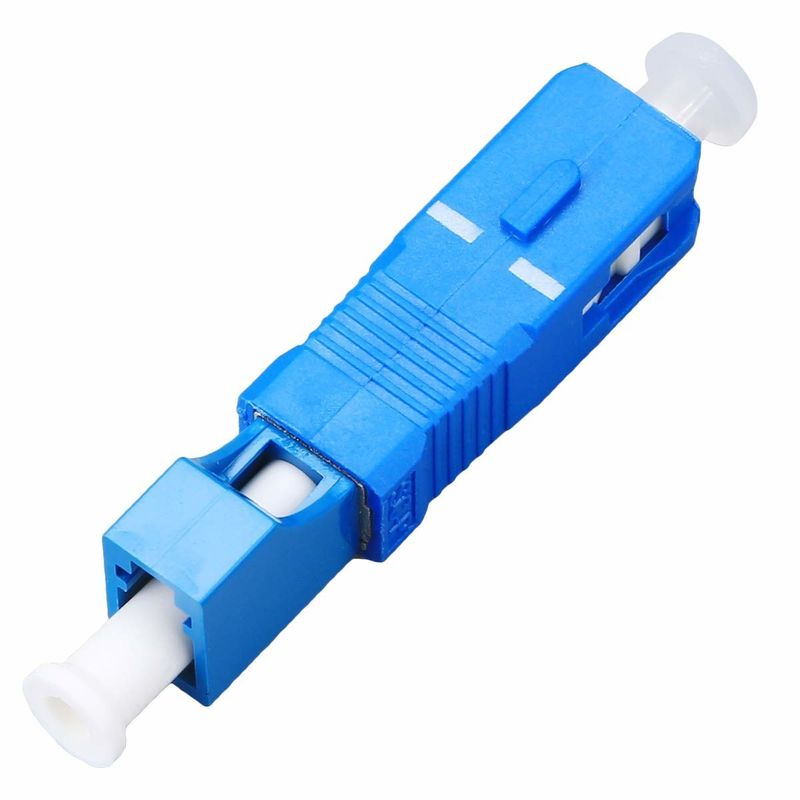

FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM

FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM
FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM

Large Image :  FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM

Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: FC / ST / LC / SC / MPO
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: standard export package
Delivery Time: 2-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Supply Ability: 100,000 pcs per month

FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM

Description
Material: Plastic / Metal Connector Type: SC / LC / ST / FC / MPO
Mode Type: Single / Multi Mode Repeatability: >1000 Times
Attenuation: 1-30 DB Return Loss: PC ≥ 45dB UPC ≥55dB APC ≥65dB
Delivery Time: 2-10 Working Days After Receive Payment Packing: Standard Export Package
Payment Term: T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM Certificate: CE , ISO , RoHS
High Light:

sc simplex adapter

,

lc fiber optic adapter


 Fiber Optic Attenuator  FC Male to LC Female Hybrid Optical Fiber  Adapter Compatible



Product features

  • SC Male to LC female hybrid Flange
  • Singlemode 9/125 SM optical fiber adapter
  • Insertion Loss: ≤ 0.3dB
  • Return Loss: ≥ 50dB
  • Package include:1 X SC Male to LC female Adapter(SM)



Product description

Widely apply on Visual Fault Locator, Optical Power Meter, Fiber Optic Instrument test interface conversion. There are single mode multimode, PC and APC. Single mode blue, multi-mode beige, APC green.
SPECIFICATIONS:


Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 50dB
Durability: ≤ 0.2dB typical change 1000,matings
Operating Temperature: -40 ~ + 85°C
Package Include:


X 1 SC Male to LC female Adapter(SM)
New Light offers strictly quality testing products before sending them out.We'll always be here when you need us, just simply message us if you have any problem.




Specification:


ItemParameter
ModelFixed, Female&Male, In-line, Variable
Operating WavelengthSM:1310/1550nm MM: 850/1300nm
Attenuation Range1~30dB
Return LossPC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power1000mW
Polarization Dependent Loss≤0.1dB
Working Temperature-40°C~+75°C
Storage Temperature-40°C~+ 85°C
Humidity95%RH




Application:


  • Testing equipment
  • Fiber optical CATV
  • Fiber optical sensor
  • Fiber optical telecommunication system


Feature

Low insertion loss , high return loss
Height Reliability And Stability
Wide operation temperature from -40°C to 85°C
♦ Fixed Attenuator(Fixed Type FC, SC, ST, LC)
♦ Female to male type ( FC, SC, ST, LC)
♦ In-Line Attenuator(Fused and Fiber Jumpers Type)
♦ High Return Loss(In-Line and High RL Type)
♦ Exact and Stable Attenuation(Variable Type)



More picture

FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM 0



Your may like

FTTH Fiber Optic Single Mode Attenuator LC Female To SC Male 9 / 125 SM 1






                                                     Company introduction

New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.

Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc.

Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.

Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.

Products received  high reputation and feedback from all customers!

Please contact us if any we can support and cooperate together!



Delivery and payment

1. Delivery time : 2-15 working days after received payment
2.package: export sdandard package
3. payment term: T/T ,PAYPAL,westen union ,L/C . 30% deposit , 70%balance paid before delivery
4.warranty : 3 years
5.Delivery method : by aire ( DHL, UPS,FEDEX ,TNT,etc ) by sea




Ordering Information:

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
