Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule

Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule
Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule

Large Image :  Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule

Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: FC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: standard export package
Delivery Time: 2-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Supply Ability: 10,000 pcs per month

Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule

Description
Material: Metal Mode Type: Single Mode
Connector Type: APC Insertion Loss: <0.3dB
Delivery Time: 2-10 Working Days After Receive Payment Packing: Standard Export Package
Payment Term: T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM Certificate: CE , ISO , RoHS
Return Loss: >60 DB
High Light:

fiber optic cable connectors

,

multimode fiber connectors

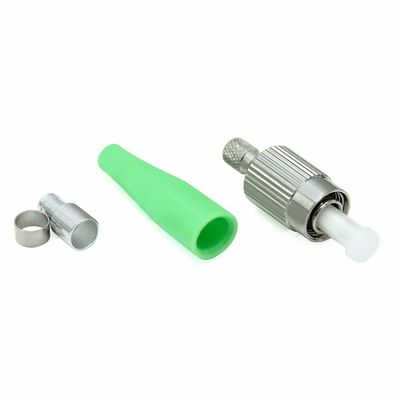

FC Fiber Optic Connectors Single Mode Simplex APC 0.9mm Ceramic Ferrule

  • Color Code: Green
  • Durability: 1000 Cycles, cleaning every 100 cycles
  • Recommended Cable Diameter: 0.9mm
  • Polishing: APC
  • Insertion Loss: < 0.3dB for SM Fiber
  • Operating Temperature: -4° to 158° F (-20° to +70° C)
  • Fiber Core: OS1 9/125
  • Recommended Adhesive: Anaerobic Adhesive
  • Termination: Connector A (FC)



  •  singlemode Fiber FC Connector Epoxy-polish are especially designed to provide low insertion loss and back reflection, along with high precision and mechanical stability.
  • Our male Fiber Connectors have pre-polished  ceramic ferrule with a slight spherical end-face. They also feature a screw-on collet that ensures precise connections in high vibration environments.
  • intermateability standards and conform to RoHS environmental requirements.
  • Singlemode Connector body is made of nickel plated metal, which resist corrosion. They come with boots suitable for 0.9mm fiber cable diameters.
  •  FC APC simplex singlemode connectors are suitable for Local Area Networks (LANs), Wide Area Networks (WAN), Metropolitan Area Networks (MAN) data center, business, premises, FTTH and commercial applications. They are an ideal companion of Bulk Fiber Optic Cable Singlemode



Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode
PC UPC APC PC PC UPC PC PC UPC PC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35
Wavelength nm 850,1310 850,1310 850,1310
Interchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9




Your may like

Single Mode Fiber Optic Quick Connector Simplex APC 0.9mm Ceramic Ferrule 0



                                                     Company introduction

New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.

Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc.

Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.

Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.

Products received  high reputation and feedback from all customers!

Please contact us if any we can support and cooperate together!


Delivery and payment

1. Delivery time : 2-15 working days after received payment
2.package: export sdandard package
3. payment term: T/T ,PAYPAL,westen union ,L/C . 30% deposit , 70%balance paid before delivery
4.warranty : 3 years
5.Delivery method : by aire ( DHL, UPS,FEDEX ,TNT,etc ) by sea


Ordering Information:

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
