32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty

32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty
32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty
32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty 32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty 32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty

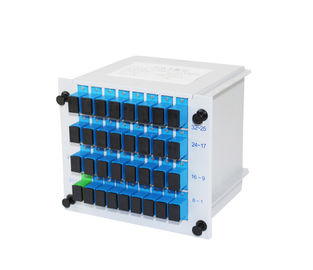

Large Image :  32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty

Product Details:
Place of Origin: Shenzhen, China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: MPO / MTP - LC / SC / FC / ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: foam + carton box
Delivery Time: 2-10 working days after received payment
Payment Terms: L/C, , T/T, Western Union, MoneyGram , paypal
Supply Ability: 2000 pcs per month

32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty

Description
Material: ABS / PC Application: FTTH / FTTB/ FTTX Network
Operating Temperature: -20° ~ +80 ° Max Capacity: 1X8/16/32/64 Cores
Suitable Adaptor: LC / SC / ST / FC OEM/ ODM: Acceptable
Deliery Time: 2-10 Working Days After Receive Payment Payment Method: T/T , Paypal , Western Union , Money Gram
OEM / OEM: Acceptable Warranty: 3 Years
Shipping: By Air Or By Sea
High Light:

outdoor fiber termination box

,

wall mount fiber termination box





Description



32 core sc apc / pc Fiber Optic material cassette PLC splitter plastic material



Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using



silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good



channel-to-channel uniformity. It widely used in PON(EPON/GPON) networks to realize optical signal power splitting.



The products are Telcordia GR-1209 and GR-1221, IEEE 802.3 ah for EPON, 802.3 av for 10G-EPON ITU-T G.984



for GPON, G.987 for 10G-GPON.


- Low Insertion Loss
- Broadband Operation
- Excellent Uniformity
- Low Polarization Dependent Loss
- Low excess loss & High performance


 PLC Splitter LGX Box Features


Low insertion loss
Low Polarization Dependent Loss
Compact design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260~1650nm
High Reliability and Stability
Telcordia GR-1209-CORE-2001 Compliant
Telcordia GR-1221-CORE-1999 Compliant


Application


Installed in Outdoor Cabinet and Floor Terminal Box
FTTH Fiber to the home
PON network
CATV
Fiber LAN



Standard Operating Wavelength
850nm,1310nm ,1550nm
Insertion loss
≤0.3dB, additional loss variation is not more than 0.2dB, additional loss variation of not more than 5dB
Return loss



PC≥40dB,UPC≥50dB,APC≥60dB



Dielectric strength
≥ 3KV (DC) / 1min without breakdown, no arcing



Insulation resistance
≥ 1000MΩ / 500V (DC) Life: ≥ 1000 times
Optical fiber bending radius
≥40mm
Optical fiber connector
500 times after plugging: no mechanical damage, the pin surface without obvious scratches

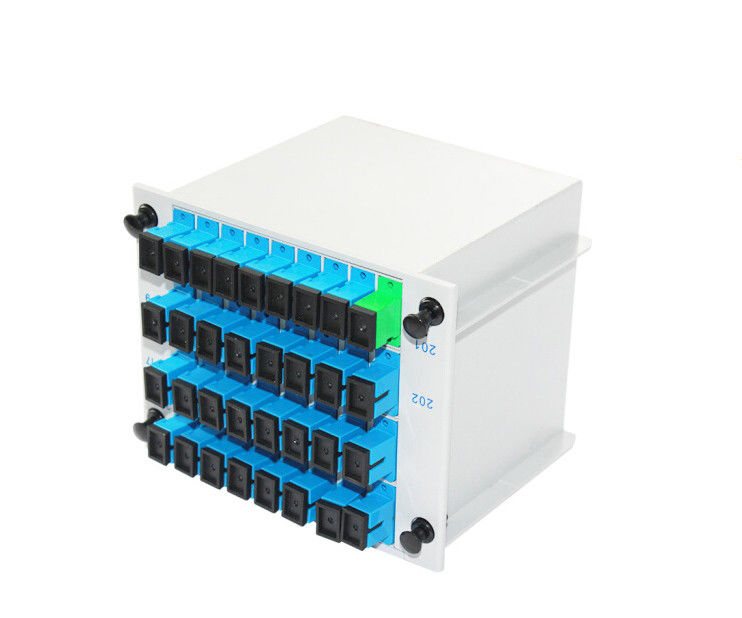

More pictures



32 Core Fiber Optic Cassette SC APC / PC Plastic Material With 3 Years Warranty 0





Company Introduction



New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.



Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.



Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.



Products with high reputation and feedback from all customers!



Please contact us if any we can support and cooperate together!







Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements )







Why Choose Us:


1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
