Product Details:
|
| Connector Type: | MPO / MTP | Material: | LSZH |
|---|---|---|---|
| Mode Type: | Multi Mode | Core Type: | 12 Core |
| Cable Color: | Aqua | Length: | Can Be Customized According To Your Requirements |
| Certificate: | CE , ISO , RoHS | Delivery Time: | 2-7 Working Days After Received Deposit |
| Production Ability: | 500 Pcs / Day | Payment Term: | T/T , 30% Deposit In Advance |
| High Light: | mpo to mpo cable,mpo fanout cable |
||
Product Description

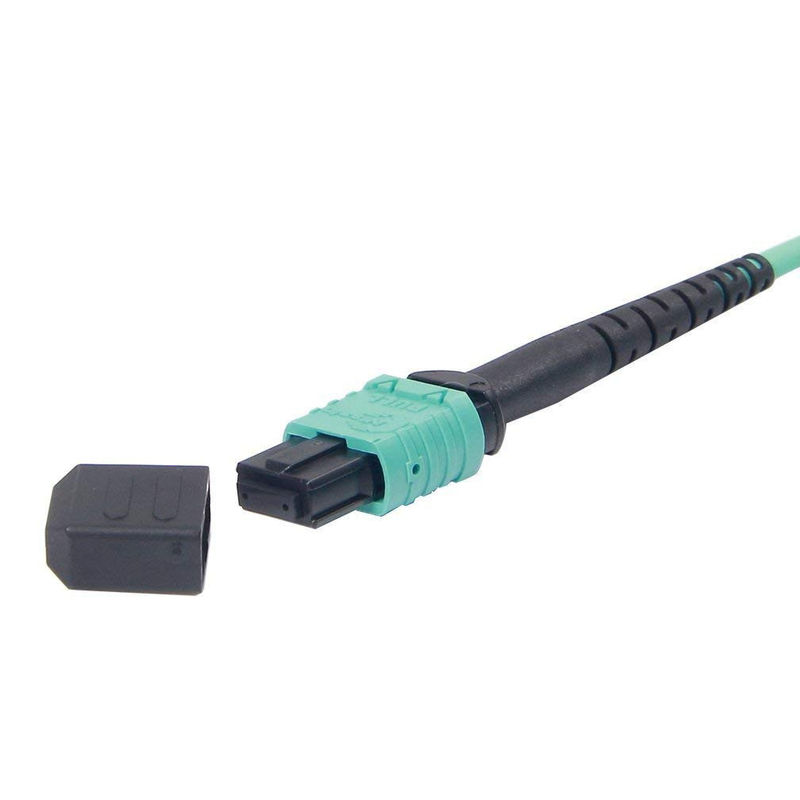

3.3ft MPO-MPO fan out Patch Cord, 40GbE 8 core Fiber for QSFP Transceivers Application OM3
High-precision Ceramic ferrule, which is easy to weld, ensures small optical loss and stable transmission.
MPO-8MPO Fiber Optic Cable body is made of PVC/ LSZH plastic materials, which is shiny, tough, environmental protection, not fade, not broken and not easily deformed.
The inside optical cable is aramid, which is tough, tensile, non-toxic, fire retardant, core protection and low smoke. The connector is PBT plastic materials and fine copper, which is firm, durable, environmental protection, high temperature resistant, not fade, not broken and not easily deformed.
Technical Parameter
| Item | Technical Parameters | |
| Connector | MPO (F or M) | MPO (F or M) |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
|
| Return Loss | SM:≥60dB; MM:≥35dB | |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
Using temperature
-40° ~ +80°
Application :
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Pakcing :
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
Delivery :
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment :
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
More products :
We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
