Product Details:
|
| Connector Type: | LC -SC | Mode Type: | Multi Mode |
|---|---|---|---|
| Cable Type: | OM3-300 | Cable Material: | PVC/LSZH |
| Cable Diameter: | 2.0/3.0mm | Delivery Time: | 2-7 Working Days After Payment Done |
| Warranty: | 3 Years After Delivery | Cable Color: | Aqua |
| Length: | Can Be Customized | Insertion Loss: | ≤ 0.3dB |
| Return Loss: | ≥40dB | ||
| High Light: | fiber optic pigtail,ftth fiber optic cable |
||

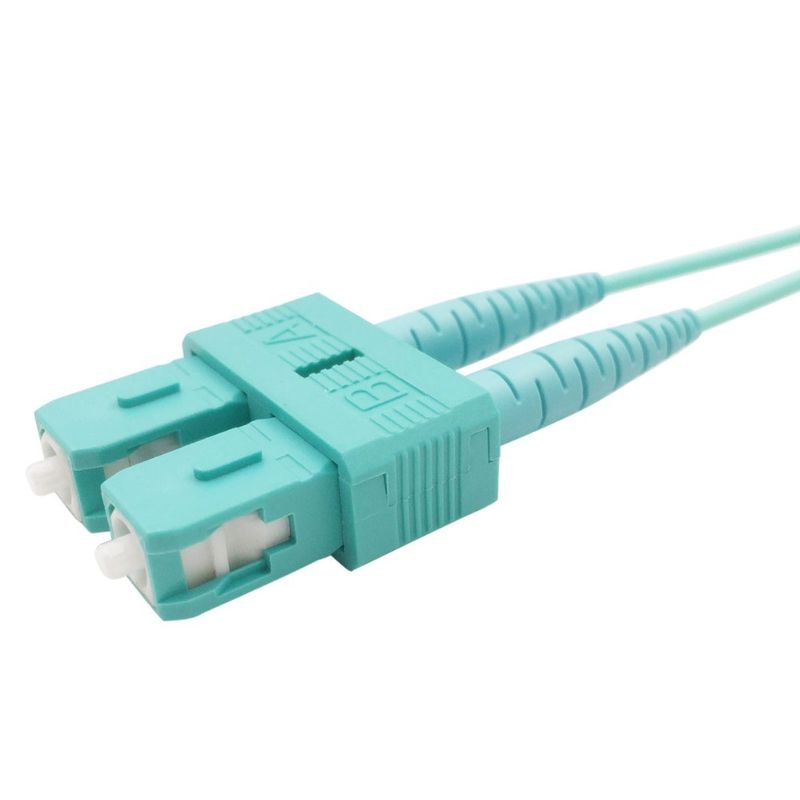

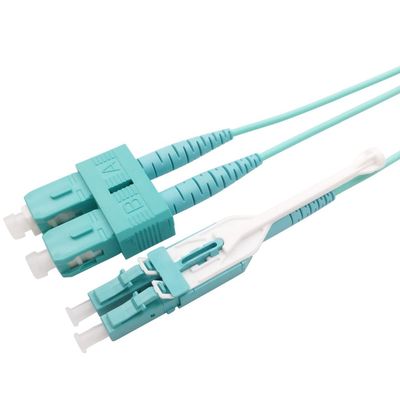

SC - LC multi mode duplex OM3 - 300 aqua color optic fiber cable
Normal duplex patch cord LC connector will have clip ,but SC connector do not have clipe on it , If you need clip one SC connector , please let us know before we quote . because the price is a little different .
OM3 50/125 cable have two type : OM3-150 and OM3-300 . please let us know the type that you need before we quote .
OM3-150 can be transfer 150 meters distance , and OM3-300 can be transfer 300 meters distance . you can choose the cable type as your transfer requirements .
| Mode | Single mode | Multimode | ||
| Polish | UPC | APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | |
| Return Loss | ≥55dB | ≥65dB | ≥45dB | |
| Test Wavelength | 1310/1550nm | 850/1310nm | ||
| Durability(500 Matings) | ≤0.2dB | |||
| Operating Temperature | -20℃~+70℃ | |||
| Storage Temperature | -40℃~+85℃ | |||
| Fire Resistant | IEC 60794-2-30 | |||
| Standards-Compliant | ROHS,IEC and GR-326 | |||
| Free Sample | YES | |||
| Delivery time | 1days for sample, 3days for production | |||
The optical fiber jumper wire is used to make the jumper wire from the equipment to the data center
There is a thicker layer of protection, generally used between the optical terminal and the terminal box, and used in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN
• Various connector types available
• Low insertion loss and back reflection loss
• Good exchangeability
• Good Durability
• High temperature stability
• Standard: Telcordia GR-326-CORE
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
|
Multimode: (8)50/125-OM5 |
|
| Fiber brand | YOFC, Corning, OFS... |
| Connector type | SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores, 48 core , 96 core 108 core ,120core .. |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket | PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
|
Connector type :
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
