Product Details:
|
| Products Name: | FTTTH Drop Cable Indoor 8 Core Single Mode Fiber Optic Cable PVC | Mode Type: | Single Mode |
|---|---|---|---|
| Cable Type: | G652D | Cable Material: | PVC/LSZH |
| Cable Diameter: | 2.2(outer/inner) | Delivery Time: | 2-7 Working Days After Payment Done |
| Warranty: | 1 Year After Delivery | Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery |
| Length: | Can Be Customized | Core: | 8 Core |
| High Light: | duplex fiber optic patch cable,simplex fiber optic cable |
||

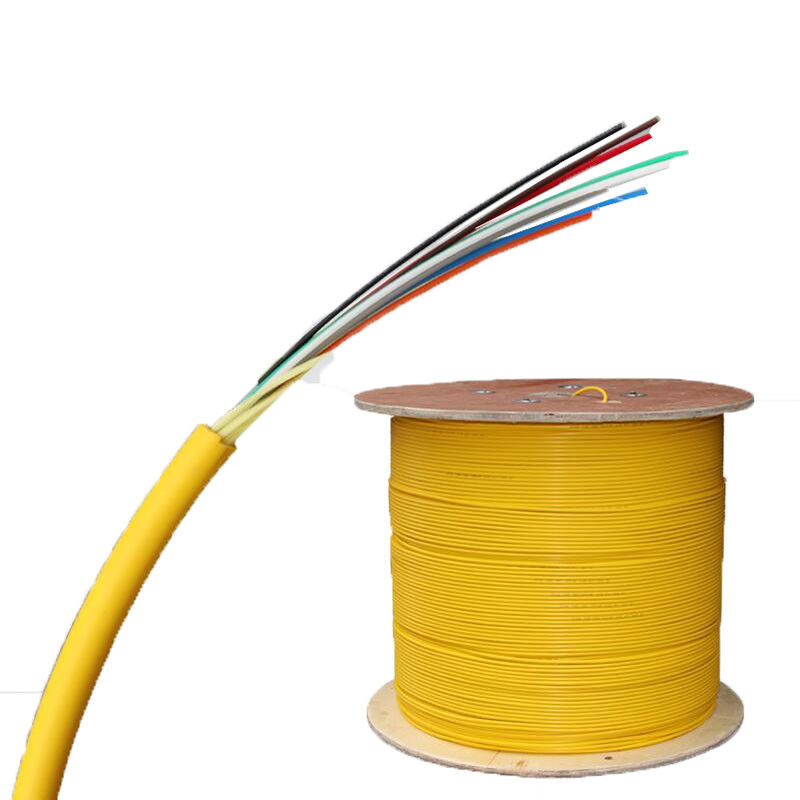

FTTTH drop cable indoor 8 core single mode fiber optic cable PVC
optic fiber cable have indoor and outdoor type . also have lots of type : armored cable . drop cable , pull far cable , GYXTW ,etc
Also , the cable diameter from 0.9/2.0/3.0/3.6/4.8/7mm and core quantity : simplex , duplex ,4 core ,6 core ,8 core ,12core ,24 core ,48 core ,etc , it can be customized accroding to your requirements .
Cable construction details
| Number of fiber | 8core | |||||||
| Loose tube | material | PBT | ||||||
| diameter | 2.2(outer/inner) | |||||||
| Tube-filling | Tube filling compoun | |||||||
| Steel wire | size | 0.8mm | ||||||
| Number | 2 | |||||||
| Outer sheath | material | PE,HDPE,LDPE | ||||||
| diameter | 1.8±0.2mm | |||||||
Cable Mechanical characteristic
| core | Cable diameter | weight | |||||
| 1~8 | 8.0mm+-0.3mm | 65kg/km+-10kg | |||||
| Temperature range | -40+70(℃) | ----- | |||||
| Min Bending Radius(mm) | Long term | 10D | |||||
| Min Bending Radius(mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength(N) |
Long term | 1200 | |||||
| Min allowable Tensile Strength(N) |
Short term | 1500 | |||||
| Operation temperature | -40+70(℃) | ||||||
| Installation temperature | -20+60(℃) | ||||||
| Storage temprature |
-40+70(℃) | ||||||
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
|
Multimode: (8)50/125-OM5 |
|
| Fiber brand | YOFC, Corning, OFS... |
| Connector type | SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket | PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
|
