4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside

4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside
4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside
4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside 4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside 4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside

Large Image :  4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside

Product Details:
Place of Origin: Shenzhen,China
Brand Name: YOFC / Corning
Certification: ISO,RoHS , CE
Model Number: 4 core
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 50000 m / day

4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside

Description
Products Name: 4 Core Single Mode White Color Fiber Optic Cable With 0.9 Buffer Fibers Inside Mode Type: Single Mode
Cable Type: G652D/G657A1/G657A2 Cable Material: PVC/LSZH
Cable Diameter: 5.0mm Delivery Time: 2-7 Working Days After Payment Done
Warranty: 1 Year After Delivery Payment Term: T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery
Length: Can Be Customized Core: 4 Core
High Light:

duplex fiber optic patch cable

,

fiber optic drop cable





4 Core Single Mode white color Fiber Optic Cable with 0.9 Buffer Fibers inside



Technical Parameters



0.9mm Tight Buffers / loose buffer 4 core fibers and aramid yarn inside, PVC or LSZH jacket. We still have more, please check us.



New Light Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality





Features :

High strength yarn member; lightweight, small out diameter; flame-retardant, soft and easy to strip; loose tube, environment friendly etc.



Application :

1: Building to building connecting;

2: Indoor soft cable along the wall ceiling, between layers and in conduits;

3: Make pigtails, movable, connectors and patch cord for communication equipment.



Product Description


Geometrical Characteristic



Fiber Count 4 8 12 16 24 36 48
Cable Diameter (mm) 5.0 5.5 6.5 7.5 8.2 9.0 10.5
Tolerance Range (mm)   ±0.2, or customized
Cable Weight (kgs/km) 20 26 36.5 44.5 54.5 72 90
Buffer Diameter(mm)   0.6 or 0.9



Mechanical Characteristic



Tensile (N) Long term 200
Short term 660
Crush (N/100mm) Long term 200
Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
Static 10xD
Temperature Range (℃) -20~+70

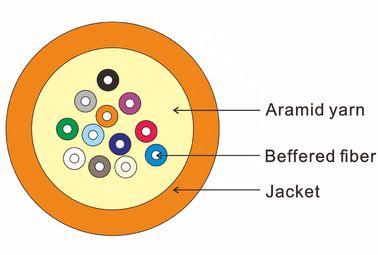

Cable construction details



Fiber type Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A1,G657A2,G657B2,G657B3

Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4

(8)50/125-OM5

Fiber brand YOFC, Corning, OFS...
Connector type SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN







Cord type Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter 0.9mm, 2.0mm, 3.0mm....
Cable jacket PVC, LSZH, OFNR, OFNP
Length(M)

0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
