Product Details:
|
Products Name: | 18 Core Self-supporting 100 Span Single Jacket ADSS Fiber Optic Cable For Aerial | Mode Type: | Single Mode |
---|---|---|---|
Cable Type: | G652D/G657A1/G657A2 | Cable Material: | PVC/LSZH |
Delivery Time: | 2-7 Working Days After Payment Done | Warranty: | 1 Year After Delivery |
Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery | Length: | Can Be Customized |
Core: | 18 Core | ||
High Light: | duplex fiber optic patch cable,fiber optic drop cable |

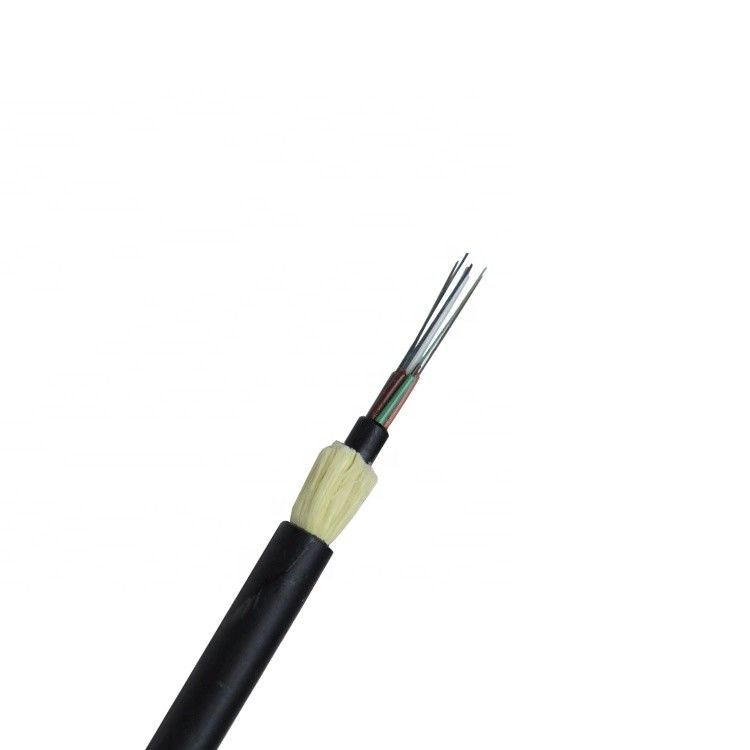

18 core self-supporting 100 Span Single jacket ADSS fiber optic cable for Aerial
ADSS Cable (All Dielectric Self-supporting Aerial Cable) is loose tube stranded cable.
Fibers are positioned into loose tube made of high modulus plastics. The tubes are filled with a water-resistant around FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound, it is covered witha thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT outer sheath.
After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT outer sheath.
Technical Parameters:
Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. Working Tension (kN) |
Max Allowable
|
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of Elasticity CSA (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span (NESC Standard,m) |
|||||
PE Jacket |
AT Jacket |
A | B | C | D | ||||||||
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 | |
13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 | |
13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 | |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 | |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 | |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 | |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 | |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 | |
15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Features:
1.900μm tight buffer fiber,aramid yarn,flame-retardant jacket;
2.Excellent stripping performance of tight buffer fiber;
3.Suited to SM fiber and MM fiber(50μm and 62.5 μm).
Application:
Adopted to indoor distribution.
As pigtail of communication equipment.
Suitable for communication equipment served.
Suitable for floor connection.
operate temperature :
-20℃~+70℃
Cable construction details
Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
Multimode: (8)50/125-OM5 |
|
Fiber brand | YOFC, Corning, OFS... |
Connector type | SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN |
