Product Details:
|
| Size: | 122*130*148mm | Time For Fusion: | 8s |
|---|---|---|---|
| Time For Heat: | 18s | Focus Mode: | Six Motor Auto- Focusing |
| Return Loss: | >60dB | Tension Test: | Standard 2N |
| Battery Capacity: | 7800mAh | Power Supply: | Input AC100-240V 50/60HZ ,output DC13.5V/4A |
| Splice Sleeve: | 40mm / 60mm | ||
| High Light: | fiber optic tool kit,fiber optic splicing tool kit |
||

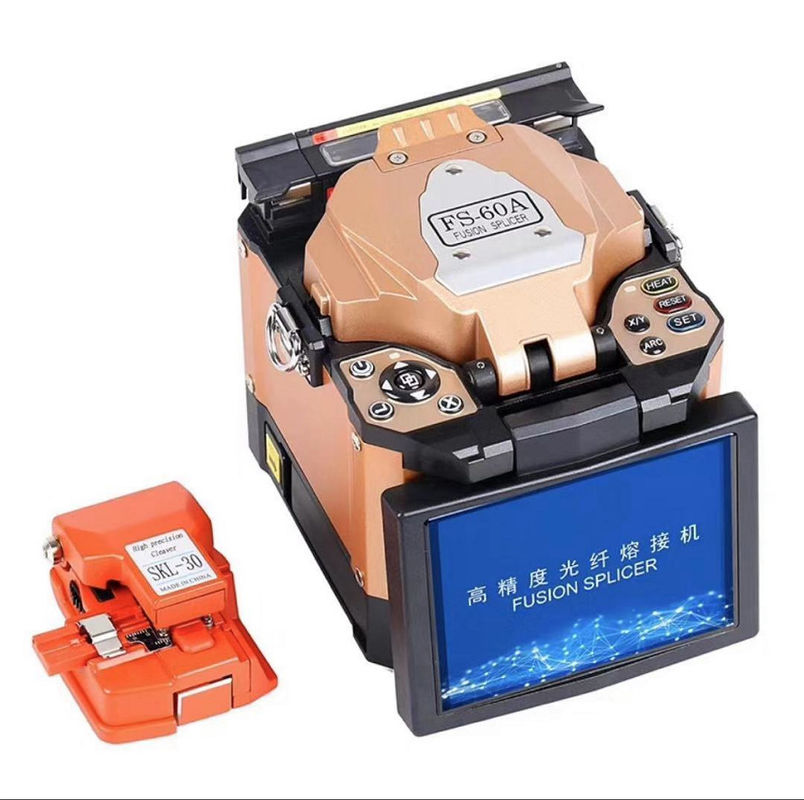

Domestic brand gold color Automatic optical fiber tool fusion splicer machine
Fiber optic fusion machine is mainly used in optical communication for the construction and maintenance of optical cable,
so it is also called fiber optic fuse machine. The general working principle is to use high voltage arc to melt the sections of
two optical fibers, and at the same time use high precision motion mechanism to gently push the two fibers into one fiber,
so as to realize the coupling of the optical fiber mode field.
| Name : | Fiber Optic Splicing Machine |
| Country of origin : | Ningbo,China |
| Application : | FTTH FTTB FTTX Network |
| Dimension(with box) : | 140x170x176mm/410x310x190mm |
| Weight(with box) : | 2.1kg/4.5kg |
| Focus Mode : | Six Motors Auto Focus |
| Applicable Fibers : | SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655) |
| Splice Loss : | 0.02dB(SM),0.01dB(MM),0.04dB(DS/NZDS) |
Additional parts
