Product Details:
|
| Connector Type: | MPO / MTP -LC | Material: | LSZH |
|---|---|---|---|
| Mode Type: | Multi Mode | Core Type: | 12 Core |
| Cable Color: | Magenta | Length: | Can Be Customized |
| Certificate: | CE , ISO , RoHS | Delivery Time: | 2-7 Working Days After Received Deposit |
| Production Ability: | 500 Pcs / Day | Payment Term: | T/T , 30% Deposit In Advance |
| Products Name: | 12 Fiber LC MTP / MPO OM4 50 / 125 Magenta Multimode Fiber Optic Patch Cord | ||
| High Light: | mpo fiber cable,mpo to mpo cable |
||

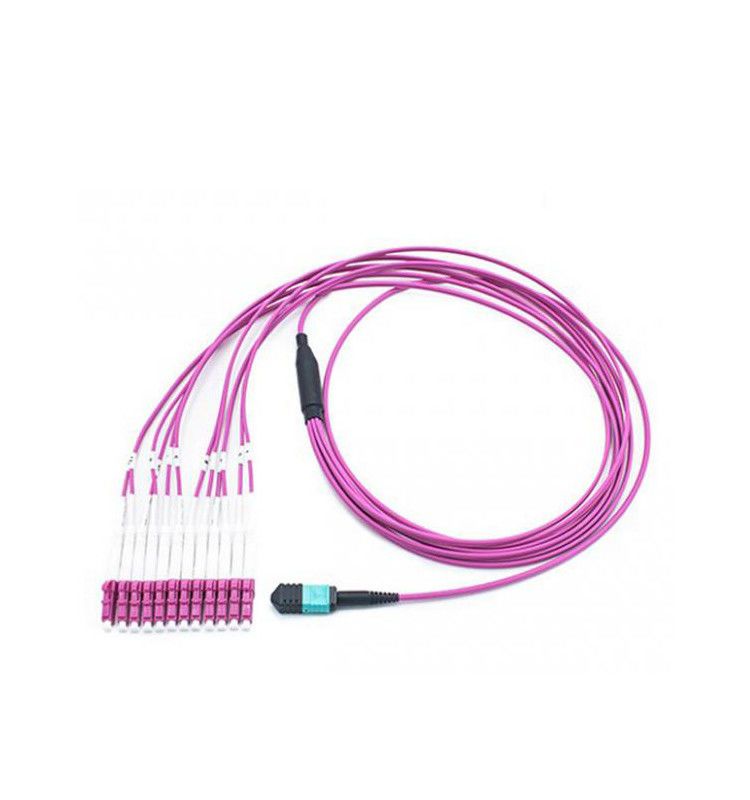

12 Fiber LC MTP / MPO OM4 50 / 125 magenta Multimode Fiber Optic Patch Cord
MPO Fiber Patch Cord are terminated with MPO connector on both end. All of OMC’s MPO Connectors are from Taiwan, Japan ,USA etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO products’ Standard:
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics
Optical Internetworking Forum (OIF) Compliant
InfiniBand Compliant
InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
What is the MPO/MTP test requests?
a.Endface request:
| 400 X | Defect description | Allow quantity | |
| Fiber(9um,50um,62.5um) | White scratches | ≤3um | No limited |
| Spot | ≤2um | 5 PCS | |
| Defect | / | No allowed | |
| Cladding (62.5-125um) |
White scratches | ≤3um | No limited |
| ≤5um | 1 PCS | ||
| Black scratches | ≤3um | 2 PCS | |
| Black spot | ≤2um | No limited | |
| ≤5um | 3 PCS | ||
| Defect | ≤2um | Around no limited | |
| ≤15um | Total length is less than the side length 1/4 | ||
| Plastic ring | / | No limited | |
b.Performance:
| MPO/MTP | SM standard ferrule | SM low loss ferrule | MM standard ferrule | MM low loss ferrule | |
| IL Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| RL | APC≥50dB | ≥ 25dB | ≥ 35dB | ||
| PC ≥ 40dB | |||||
| Repeatability | ≤0.30dB(Plug more than 500 times) | 0.30dB(Plug more than 1000 times) | |||
| Interchangeability | ≤0.30dB(With either a matching connector) | ||||
| Tensile strength | ≤0.30dB(Maximum tension 66N) | ||||
| Shock | ≤0.30dB(10~55Hz) | ||||
| Temperature Range | -40°C ~ +75°C | ||||
c.Interference indicators:
| MPO/MTP Connector | Dimension 3D Test |
| Radius of Curvature | X ≥2000mm ,Y ≥50mm |
| Fiber Height | 1000~4000 nm |
| Endface Angle | X ±0.3° ,Y ±0.3° |
| Core Dip | ±300nm |
d.Length Tolerance:
| Length(M) | Tolerance |
| ≤10 | + 10CM |
| 10<L≤30 | + 15CM |
| >30 | + 10% |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
Using temperature
-40° ~ +80°
Application :
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Pakcing :
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
Delivery :
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment :
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
More products :
We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
