Product Details:
|
| Products Name: | E2000 APC Optical Fiber Patch Cord Single Mode Duplex 5m Length LSZH Material | Connector Type: | E2000 APC |
|---|---|---|---|
| Mode Type: | Single Mode | Cable Type: | G657A1 |
| Cable Material: | LSZH | Cable Diameter: | 2.0mm |
| Cable Color: | Yellow | Length: | Can Be Customized |
| Fiber Count: | Duplex | Insertion Loss: | ≤ 0.3dB |
| Return Loss: | ≥60dB | OEM /ODM: | Acceptable |
| High Light: | single mode fiber optic cable,duplex fiber patch cord |
||
Optical Fiber Patch Cord Product Name:

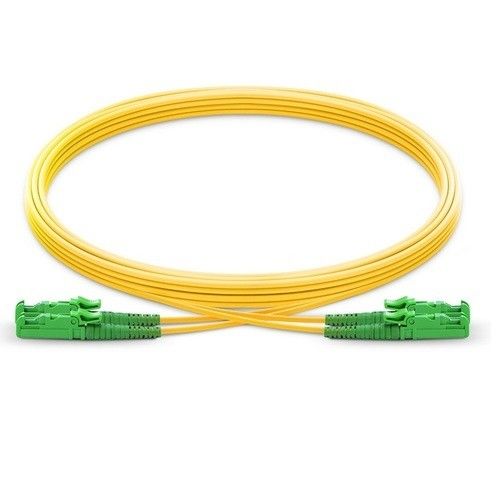

E2000 APC single mode duplex yellow cable fiber optic patch cord 5m length LSZH material
Optical Fiber Patch Cord Description:
E2000 connector is one kinds of fiber optic connector . It have a dust cap on the connector . Normal connector is seperate with dust cap ,and the dust cap will be easy to lose if you take it without bags and do not protect it very well sometimes .
E2000 caps is use a special tech and fixed on the connector , it is very safe for you to take the E2000 patch cord to anywhere ,and no need to worry about the caps issu . it can protect the surface of ferrule very well .
The E2000 cap can be very easy to open when you use . Only need to press the button near the boot ,then the cap will be opened .
The E2000 APC single mode duplex yellow cable fiber optic patch cord 5m length LSZH material , It is single mode type with duplex cable ,and have four connectors on the patch cord .
The color of single mode usually is yellow color , but the color also can be customized according to your request , total order quantity for one kinds cable should be 1000 meters , so that we can produce it by machine .
Optical Fiber Patch Cord Parameter
| products name | E2000 APC Optical Fiber Patch Cord Single Mode Duplex 5m Length LSZH Material |
| mode type | single mode |
| cable count | duplex ( can be simplex or others) |
| core type | G657A1 ( single mode core have G652D/G657A1/G657A2/G657B3/G655) |
| cable color | yellow ( can be customized according to your request ) |
| cable diameter | 2.0 ( can be 3.0 and customized diameter ) |
| patch cord length | 5 meter ( can be customized according to your request ) |
| out jacket material | LSZH ( can be PVC ) |
| insertion loss | ≤ 0.3dB ( can be ≤ 0.1dB ) |
| return loss | ≥55-60 dB |
| ferrule polished | APC |
| connector color | green |
| ferrule material | ceramic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
Optical Fiber Patch Cord Connector type
How To Order Optical Fiber Patch Cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
FQA :
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
