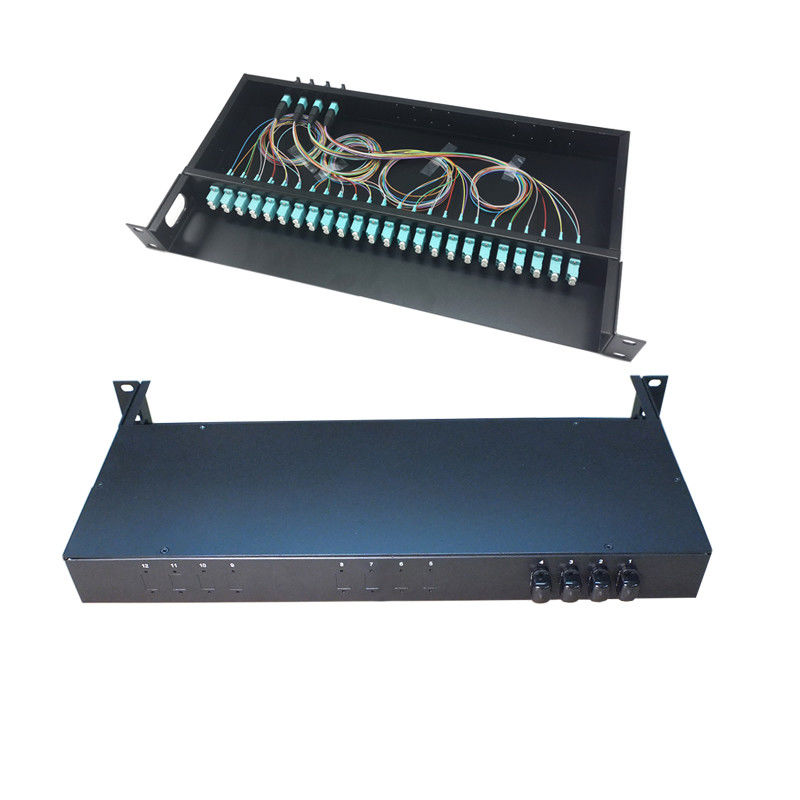

1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH

1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH
1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH
1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH 1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH 1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH 1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH

Large Image :  1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH

Product Details:
Place of Origin: China
Brand Name: New light
Certification: ROHS ;ISO9001
Model Number: 48F panel
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD 68-120 set
Packaging Details: opp bag+Carton box
Delivery Time: 2-15 working days
Payment Terms: T/T, Western Union, MoneyGram ,Paypal
Supply Ability: 10000 per day

1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH

Description
Fiber: 48 Core Color: Black
Material: SPECC Aplication: Data Centers,pre-terminated Installations
Adapter Type: MPO / MTP Adapter Front Panel: LC , SC , ST , FC , E2000
Size: 19 Inch Max Capacity: From 12 Fiber To 144 Fiber
Interface: Powder Coated Product Name: 24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel
Tray: 12/24/48/72/96 Core Weight: 6kg
High Light:

fiber optic parts and accessories

,

fiber optic accessories

1U 19 inch 48 core MPO/MTP Fiber Optical Patch Panel for FTTH



Product description:



MPO-LC Type Distribution Box in line with the network development trend of high density high capacity, MPO interface of multi-channel signal switching to LC type interface,



The module box encapsulation structure, collocation to the wiring boxes, compact structure, high density, use convenient operation.



It can be installed in a 19-inch standard integrated distribution box, network cabinet and open frame.Connect the optical path terminal.It is made of high quality cold rolled sheet material, surface electrostatic spraying treatment, no impurities, no bubble, and even color.



There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc.



Related fiber accessories and pigtails are optional.



1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH 0



Application:



1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV





Features:



Used to the branch connection of optical cable termination

19'' Standard Structure, Rack mounting

Available for the installation of adaptors

Drawer Structure, Easy for Operation.

Compact design for space saving

Easy for management and operation

Standard size, light weight and reasonable structure





Mechanical and environmental characteristics:



Projects Parameter
Operating temperature -25℃~+40℃
Storage temperature -25℃~+55℃
Relative humidity ≤85%(+30℃)
Air pressure 70Kpa~106Kpa
Color Black






Dimension:



Model MPO-LC Type Cassette Quantity Height Dimension(LxWxH)
MPO-LC 2 1U 430*354.1*44mm









1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH 1



1U 19 Inch Fiber Optic Termination Panel 48 Core MPO/MTP Rack Mounting For FTTH 2
