G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing

G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing
G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing
G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing

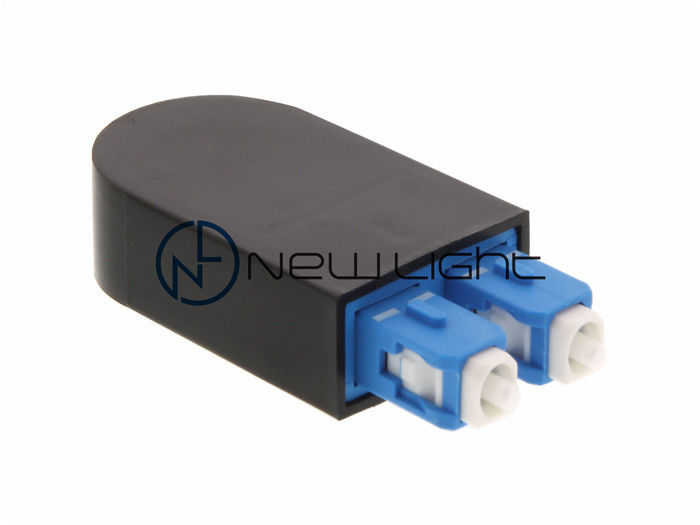

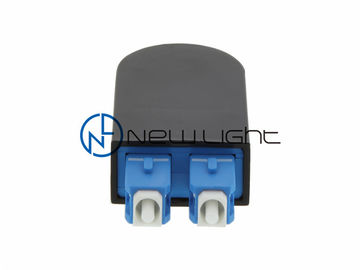

Large Image :  G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing

Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: can be negotiated
Packaging Details: standard export package
Delivery Time: 2-10 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 100,000 pcs per month

G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing

Description
Products Name: G657A1 Fiber Cable SC Optic Fiber Loopback Connector Device Pig - Tailing Product Function: Fiber Optic Loopback
Fiber Count: DX Connector Type: Blue SC
Application: Device Pig-tailing,Communications Connections,Equipment Interconnection Mode Type: SM 9/125um
Repeatability: >500 Times Insertion Loss: Less Than 0.3 DB
Return Loss: PC ≥ 45dB UPC ≥55dB APC ≥65dB Certificate: CE , ISO , RoHS
High Light:

multimode fiber loopback

,

multimode fiber optic cable

Fiber Optic Loopback Product Name



G657A1 Fiber Cable SC Optic Fiber Loopback Connector Device Pig - Tailing



Fiber Optic Loopback Description





  • SC connector loopback module
  • 9/125um single-mode fiber
  • Fiber Optic Loopback Modules are designed for testing and engineering purposes
  • Fiber Optic Loopback Modules may also be used for the burn-in stage of boards and other equipment





Fiber Optic Loopback Modules incorporate two fiber optic connectors. One fiber optic connector is plugged into the output port, while the other fiber optic connector is plugged into the input port of the equipment.

Fiber Optic Loopback Modules are designed for testing and engineering purposes. Fiber Optic Loopback Modules provide system test engineers with a simple but effective way of testing the transmission capability and receiver sensitivity of fiber optic network equipment.



The single-mode type cable can be 9/125um( G652D), 9/125um( G657A1), 9/125um( G657A2). And the cable color is yellow.



The material of the housing is plastic, which will be more Environmental protection, and also can save the cost for the delivery.





Fiber Optic Loopback Parameter




Singlemode
Multimode
OM3 10G
Connector Type
LC, SC, MT-RJ, MU, ESCON, FDDI, E2000
Cable type
Simplex cable
Jacket color
Yellow
OR/GY/PP/BL
Aqua
Insertion Loss
≤0.1dB
≤0.2dB

Return Loss
≥50dB(UPC)

Exchangeability
≤0.2dB

≤0.2dB

≤0.2dB

Repeatability(500 matings)
≤0.1dB

≤0.1dB

≤0.1dB

Tensile Strength
≥5kg
Operating Temperature
-20~+70ºC
Storage Temperature
-40~+70ºC





Fiber Optic Loopback Feature​



  • Custom Manufactured
  • Ideal for testing and diagnosing fiber-optic network equipment
  • Compliant to IEC, TIA/EIA, NTT and JIS specifications
  • Custom loop length and cable diameter on request







Fiber Optic Loopback Application



Equipment interconnection
Premise networks
Patch panel applications
Communications connections
Device pig-tailing



G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing 0

Related products



G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing 1



FQA :



1. Q: Are you a manufacturer?

A: yes, we are a manufacturer in Shenzhen, China



2. Q: What's your MOQ?

A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher, so that the price will be higher than your budget.



3. Q: What's the price?

A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.



4. Q: Can you quote FOB price?

A: yes we can, but due to the size and weight is not big, most are delivered by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.



We have a very competitive price shipping forward. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.



EXW price or CFR price will be better . You can contact us for more solution if you need.



5. Q: How is your quality?

A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.



All the products are 100% test before delivery.



6. Q: What's your lead time?

A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.

For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with urgent orders for you. For more information, you can feel free to contact us.



7. Q: What's your warranty?

A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.



8. Q: What's your packing?

A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing



9. Q: Can you do OEM/ODM?

A: yes, we can. We are a manufacturer, all products accept OEM /OD M. we can sign the Confidentiality Agreement.



10. Q: Can I have a sample?

A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.

For big value products, we can't offer it for free, sample charge and freight repaid first after you placed an order, the sample charge will be returned.



11. Q: How can I order?

A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.

2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.

3. When you accept the quotation, we will make a Proforma Invoice with our bank account.

4. We will arrange the production for you after we received the payment.

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.

6. We will try our best to meet your requirements for long-term cooperation.



12. Q: What your payment term?

A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.



Packing reference



G657A1 SC Optic Fiber Loopback Connector Device Pig - Tailing 2
