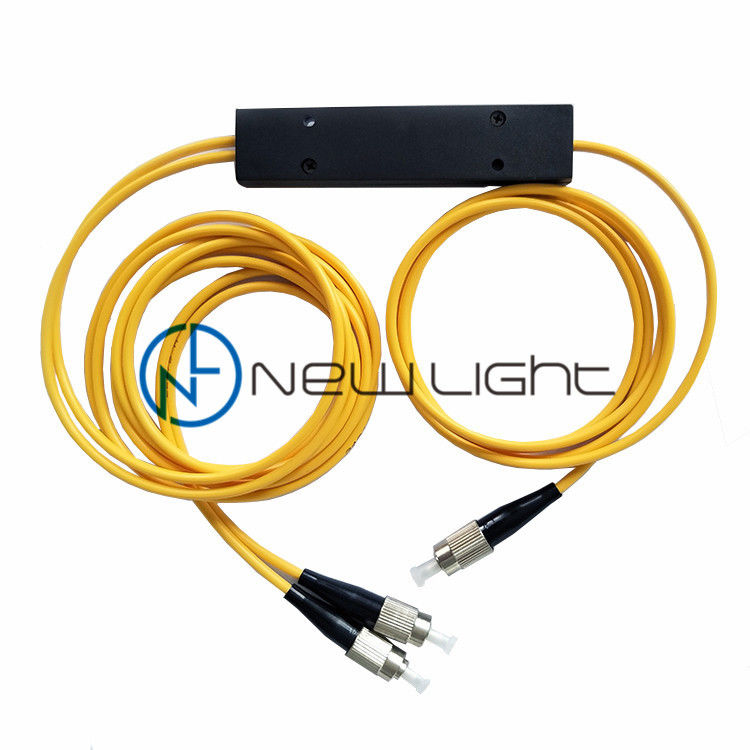

2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer

2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer
2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer 2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer

Large Image :  2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer

Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE , ISO ,RoSH
Model Number: WDM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 2000 pcs per month

2.0mm Cable FC Fiber Optic 1470nm DWDM Add Drop Multiplexer

Description
Product Name: 2.0mm Cable FC Fiber Optic DWDM Add Drop Multiplexer Single Mode Fiber 1470nm Wavelength Mode Type: 9/125um
Cable Diameter: 2.0mm Insertion Loss: ≤ 2.5 DB
Connector Type: FC Wavelength: 1470-1610nm
Passband Ripple: ≤0.30dB Return Loss: ≥45dB
Derectivity: ≥50dB Application: CATV Links,WDM Network,PON Networks
High Light:

2.0mm fiber optic wdm

,

1470nm fiber optic multiplexer

Fiber Optic WDM product name



2.0mm Cable FC Fiber Optic DWDM Add-Drop Multiplexer Single-Mode Fiber 1470nm Wavelength



Fiber Optic WDM Description



The design of the communication system is different, and the width of the interval between each wavelength is also different.



According to the different channel spacing, WDM can be subdivided into CWDM (Sparse Wavelength Division Multiplexing) and DWDM (Dense Wavelength Division Multiplexing).



The channel interval of CWDM is 20nm, and the channel interval of DWDM is from 0.2nm to 1.2nm, so relative to DWDM, CWDM is called sparse wavelength division multiplexing technology.



In fiber-optic communications, wavelength-division multiplexing (WDM) is a technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e., colors) of laser light.



Wavelength division multiplexing WDM (Wavelength Division Multiplexing) is to combine two or more different wavelength optical carrier signals (carrying various information) at the sending end through a multiplexer (also called a multiplexer), and The technology of transmission in the same optical fiber coupled to the optical line;



at the receiving end, the optical carriers of various wavelengths are separated by a demultiplexer (also called a demultiplexer or demultiplexer), and then separated by the optical The receiver performs further processing to restore the original signal. This technique of simultaneously transmitting two or more optical signals of different wavelengths in the same optical fiber is called wavelength division multiplexing



Fiber Optic WDM Application



  • CWDM System
  • PON Networks
  • CATV Links
  • WDM Network







Fiber Optic WDM Feature



  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Mounted in 191 u Racks or ABS box optional
  • Wide Operating Wavelength: From 1260nm to 1620nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • High Reliability and Stability



Fiber Optic WDM Parameter





Parameters 1x2 1x4 1x8 1x16
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1460~1620 or 1260~1620
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) (P/A Grade) 0.7/1.0 1.4/1.7 2.0/2.5 2.5/3.0
Isolation (dB) Adjacent Channel 30
Non-Adjacent Channel 50
Ripple (dB) 0.3 0.4 0.5 0.5
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Compact BOX Package (mm) 100*80*10 140*115*18
LGX Package 1U, 2U
19’’ Rack mount Package 1U




1×N CWDM Mux/Demux Module


OADM
  ITU Channels Number Application Type Central Wavelength Fiber diameter Fiber Length

Connector



1=100G

2=200G

4=4 Channels

8=8 Channels

16=16 Channels



M=Mux
D=DeMux

41=1410nm

43=1430nm

45=1450nm

47=1470nm

49=1490nm

51=1510nm
53=1530nm
55=1550nm
57=1570nm
59=1590nm

1=250um
2=900um
3=2.0mm
4=3.0mm
XX=Other

05=0.5m
10=1.0m
15=1.5m
20=2.0m
XX=Other

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC
X=Other
