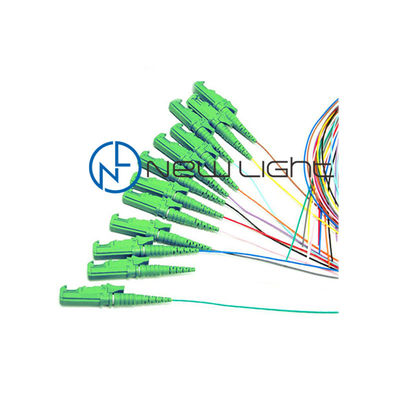

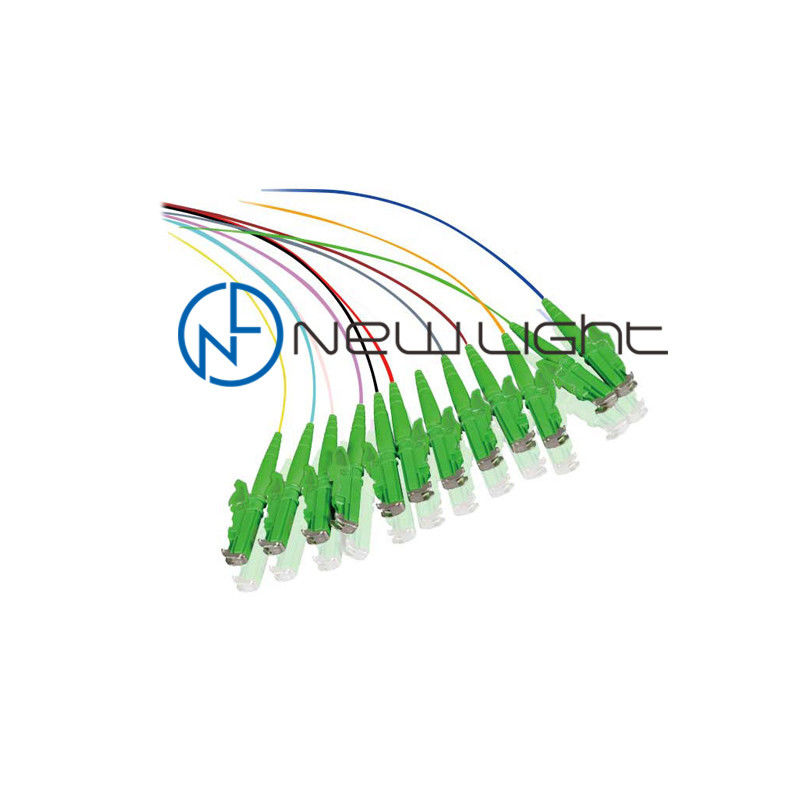

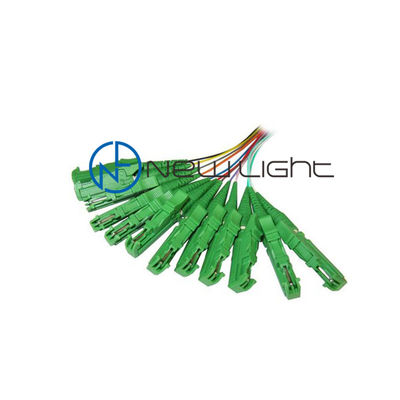

Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable

Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable
Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable
Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable

Large Image :  Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable

Product Details:
Place of Origin: ShenZhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC/ PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 12000 pcs / day

Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable

Description
Products Name: SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable Connector Type: SC( Can Be ST , FC , LC , MPO , MTRJ , MU )
Mode Type: Multi Mode Cable Color: Purple (according To Your Request)
Cable Diameter: 0.9mm Cable Length: 1 M (can Be Customized )
Insertion Loss: ≤ 0.3 DB Return Loss: ≥ 40dB
Delivery Time: 2-7 Working Days Payment Term: 30% Deposit In Advance , 70% Balance Paid Before Delivery
High Light:

0.9mm Single Mode Fiber Cable

,

SM Single Mode Fiber Cable

,

0.9mm optical distribution fiber

0.9mm LSZH loss / tight tube SM / MM 12 strand single mode fiber optic cable



The 12 fiber optic pigtail is available in both single mode and multimode versions, and is fully intermateable with NTT-SC products. Both single mode and multimode versions SC fiber patch come with a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.



The fiber cable can be 0.6mm or 0.9mm, in loose tube or tight buffered type. And the fiber pigtail can be single mode and multi mode, The multi mode pigtail in including OM1, OM2, OM3, OM4. We can offer 12cores for the pigtails according to the customers request.



Feature


Insert-pull, key-oriented coupling mechanism which allows highly repeatable, low-loss connection

· Simplex,Duplex and Multi-core accessories ,apply in the standard and specific structure

· Single mode

· UPC polish

· Comply with Telcordia GR-326-CORE Specification

· The material of plastic plug Comply with the request of UL94V-O and Standard of RO



Applications:
.FTTH

· LANS,WANS,CATV,CCTV

· Premise installations

· Data processing networks

· Industrial ,mechanical and military

· Test equipment and active device termination





Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length





Product Name OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
Modle Number Pigtail SC OM4
Diameter 0.9/2.0/3.0
Connector SC/LC/FC/ST/MPO
Cable length 1.2.3...Customized
Polishing yes,plished
Material LSZH/PVC
Form of sale OEM/ODM
Use Connect the optical transmitter, receiver, and the terminal box.
Custom Design Welcome
Sample Lead Time 1-3days
Certificate CE,ROHS
Advantage Low IL,High RL



Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC/UPC APC PC PC/UPC PC PC/UPC PC PC APC
Insertion loss(typical) dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
Return loss dB ≥ 50 ≥ 60 ≥ 30 ≥ 50 ≥ 30 ≥ 50 ≥ 30 ≥ 55 ≥ 75
Operating wavelength nm 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550
Exchangeability dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Vibration dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Operating temperature   -40~75 -40~75 -40~75 -40~75
Storage temperature   -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0





Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable 0





Application



Tight Tube SM / MM 12 Strand 0.9mm Single Mode Fiber Cable 1







Company introduction





New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.



Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.



Company have high tech technology, professional R & D team, advanced productionequipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.Products with high reputation and feedback from all customers!





Please contact us if any we can support and cooperate together!







Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
