Product Details:
|
| Products Name: | SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable | Connector Type: | SC( Can Be ST , FC , LC , MPO , MTRJ , MU ) |
|---|---|---|---|
| Mode Type: | Multi Mode | Cable Color: | Purple (according To Your Request) |
| Cable Diameter: | 0.9mm | Cable Length: | 1 M (can Be Customized ) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | ≥ 40dB |
| Delivery Time: | 2-7 Working Days | Payment Term: | 30% Deposit In Advance , 70% Balance Paid Before Delivery |
| High Light: | 12core Multimode Fiber Optic Cable,0.9mm Multimode Fiber Optic Cable,CATV Loose Buffer Optic Pigtail |
||

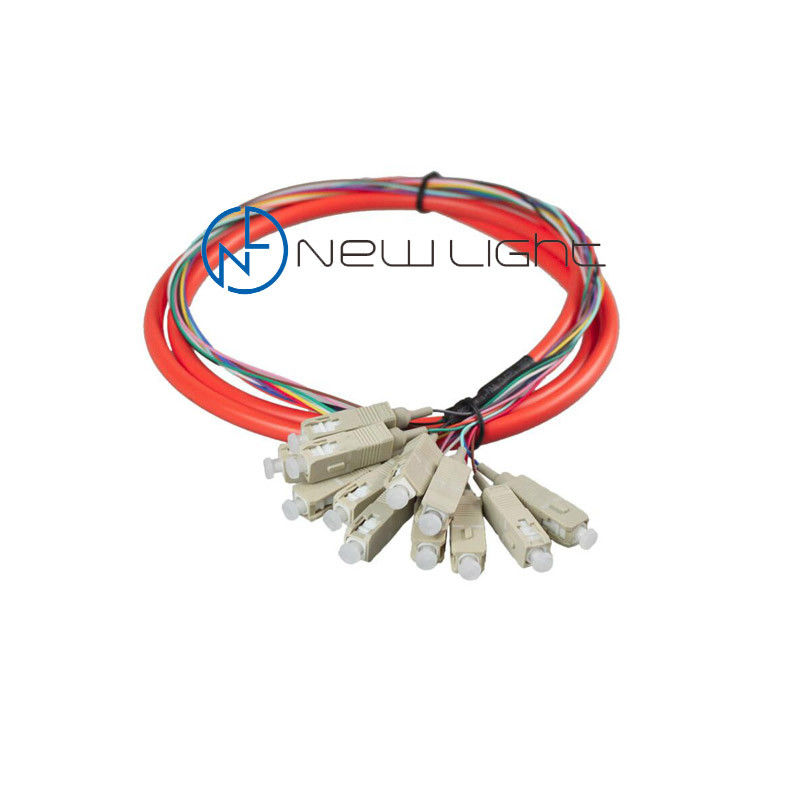

12core Bundle loose buffer multimode orange fiber optic cable
Fiber optic cable jacket colors can make it fast and simple to recognize exactly which type of cable you are dealing with. For example, the color yellow clearly identifies a single mode cable, while orange indicates multimode.
“Color-coding is an integral part of our industry, as it helps to identify individual fibers, cable, and connectors,” the company said in the newsletter. “A fiber cable’s jacket color is typically defined by the fiber type, and can differ based on mode or performance level. For example, laser-optimized multimode OM3/OM4 is aqua, making it easy to differentiate from singlemode (yellow) or OM1/OM2 (orange). Both multimode and singlemode cables designed for outdoor use will typically have a black jacket to protect the cable from damage due to solar exposure and UV light.”
Options include LC, SC, FC, ST, MT-RJ and MTP® connectors. RoHs compliant indoor, outdoor (loose tube), indoor/outdoor and ribbon cables are available. Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
| Specification | S.M | M.M | |||||||||||||||||||||||||||||||||||||||||||||
| PC | UPC | APC | |||||||||||||||||||||||||||||||||||||||||||||
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | |||||||||||||||||||||||||||||||||||||||||||
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | |||||||||||||||||||||||||||||||||||||||||||
| Durability(1000 matings) | <=0.20dB | ||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -40~+85℃ | ||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -40~+85℃ | ||||||||||||||||||||||||||||||||||||||||||||||
| Cable Diameter(mm) | 0.9/2.0/3.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized
|
||||||||||||||||||||||||||||||||||||||||||||||
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
Application
A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
