High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

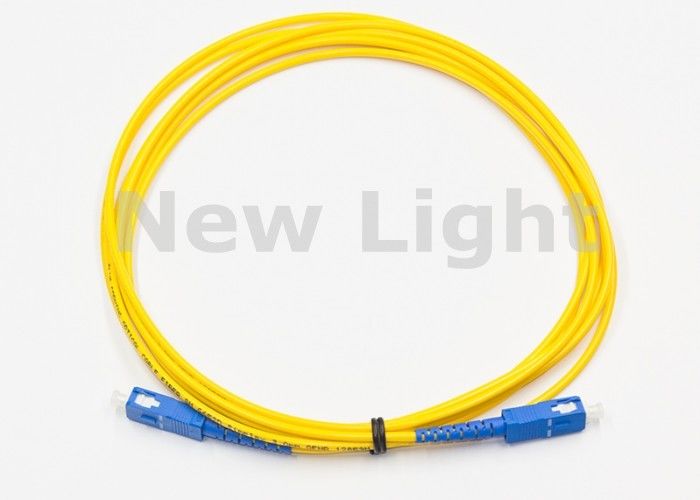

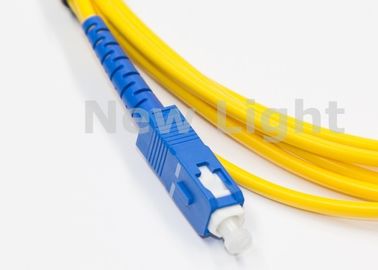

High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable

High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable
High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable

Large Image :  High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable

Product Details:
Place of Origin: China
Brand Name: NewLight
Certification: IS09001-2008.ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month

High Return Loss Optical Fiber Patch Cord / SC TO SC Single Mode Fiber Patch Cable

Description
Name: SC SC Fiber Patch Cord Diameter: 2.0mm
Model: Single Connector: SC-SC
Color: Yellow Length: 1 Meter
High Light:

sc sc fiber patch cord

,

single mode fiber optic cable

SC UPC to SC UPC Optical Fiber Patch cord Simplex 2.0mm PVC(OFNR) 9/125 Single Mode





Description:


The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.



Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.



Specification:





Connector SC to SC Jacket OD 2.0mm
Fiber Mode 9/125µm Jacket Color Yellow
Polish UPC to UPC Wavelength 1310/1550nm
Fiber Type Simplex Jacket Material PVC
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75℃ Storage temperature -45~85℃
Polarity A(Tx) to B(Rx) Fiber Grade G652D

Application:



* FTTH, LAN, PON & Optical CATV

* Local net

* Optical fiber communication system

* Optical fiber test equipment

* Optical fiber sensor

* Industry and military application



Features



Low insertion loss and high return loss
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard
