Product Details:
|
| Color: | White | Material: | ABS |
|---|---|---|---|
| Connector: | LC | Name: | LC Adapter |
| Type: | Duplex | OEM: | Available |
| High Light: | fiber optic cable adapter,lc fiber optic adapter |
||

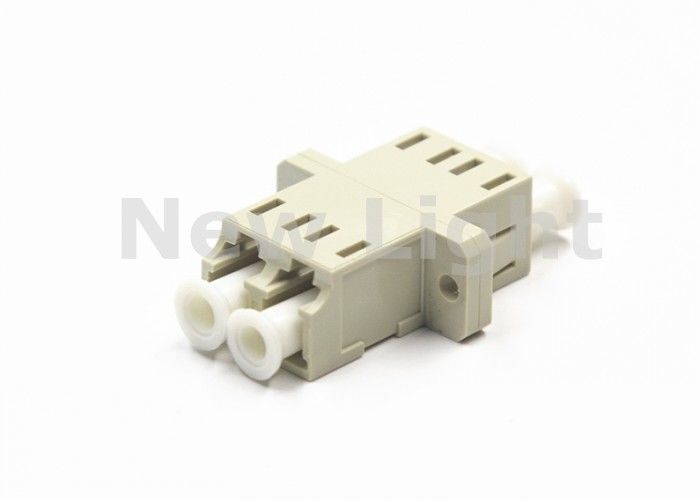

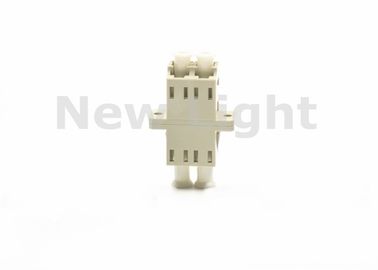

LC Fiber Optic Adaptor ( SC Type ) for Fiber Optic patch cord
SC Fiber Optic Adaptor
A fiber optic adapter or coupler is a special passive component designed to mate or connect two ends of a fiber optic cable with high precision. Fiber optic adapters mate two ends of different fibers optic connectors, achieving the conversion between different connectors FC, SC, ST,LC, MTRJ, MPO, E2000 and so on. They are widely used for Optical Distribution Frame (ODF),fiber optic
Product Description:
| Product name: | SC / Adapter |
| Connector type: | SC Simplex, duplex, long flange and short flange option |
| Color | Blue, green, beige, Aqua purple. |
| Meet the standards: | IEC/SGS/ROHS |
| Fiber Mode: | MM&SM |
| Sleeve: | Caremic/Phosphor Bronze |
| Green standards: | Yes |
Specification:
| Parameter | unit | LC,SC,FC,ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Retum Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | ＞1000 | |||
| Operating Temperature | ℃ | -40—-75 | |||
| Storage Temperature | ℃ | -40—85 | |||
Application:
* Local area network
* Optical fiber communication system
* Optical access network(OAN)
* Optical CATV
* Optical fiber sensor
* Fiber optics data transmission(FODT)
* Active device termination
* Equipment test
