|Place of Origin:||Shenzhen,China|
|Brand Name:||New Light|
|Certification:||CE , ISO ,RoHS|
|Minimum Order Quantity:||10 pcs|
|Price:||can be negotiated|
|Packaging Details:||OPP bag + carton box|
|Delivery Time:||2-7 working days|
|Payment Terms:||T/T, Western Union, MoneyGram ,paypal|
|Supply Ability:||12000 pcs / day|
|Connector Type:||LC/PC - LC /PC||Cable Type:||Duplex|
|Cable Diameter:||2.0 Mm||Jacket Material:||LSZH|
|Mode Type:||Multi Mode 50/125||Delibery Time:||2-7 Working Days (after Receive Payment )|
|Warranty:||3 Year After Delivery||Cable Color:||Aqua|
|Wave Length:||850/1300||Length:||5meters ( Can Be Customized )|
duplex fiber patch cord,
sc sc fiber patch cord
Optical Fiber Patch Cord Name :

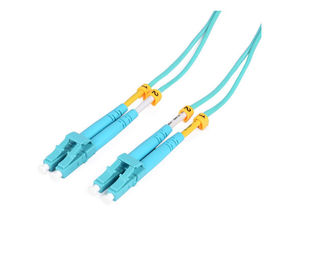

5M 2.0mm Duplex LC Aqua Cable Multi Mode 50/125 Optical Fiber Patch Cord
Optical Fiber Patch Cord Description :
These fiber cords are OM3 rated for the extreme demands of networks. They are precision factory tested for insertion and return loss to ensure transmission performance per TIA-568-C.3 specifications. The combination of LC connectors in a protective yoke, strain relief boots and zirconia ceramic ferrules provides a dependable, low-loss performance.
Optical Fiber Patch Cord Bend Insensitive Engineering
BEND INSENSITIVE DESIGN allows for a 7.5mm bending radius that is 4X more flexible than standard 50 micron fiber cables. Bend insensitive multimode fiber (BIMMF) provides greater flexibility in tight spaces or long cable runs with multiple bends.
Optical Fiber Patch Cord Application
OM3 classification rating operates with Gigabit Ethernet 1000Base-SX, or 10GBase-SR/LRM, and Fibre Channel 100/200/400/1200-MX; Backwards compatible with FDDI, and Fast Ethernet 10/100BASE SX or FX.
Optical Fiber Patch Cord Cable Specifications
- Connectors: LC to LC
- Core: 50 um
- Cladding: 125 um
- Jacket: LSZH
- OD: 2.0mm
- Classification: OM3
- Wavelengths: 850 and 1300nm
- Type: Bend-Insensitive Multimode (BIMMF)
- Ferrule Material: Ceramic
- Polish: PC
- Compliance: TIA 568-C.3 / 604-10 / 492AAAC, UL 910, C E, RoHS
Optical Fiber Patch Cord Specification
|Mode||Singlemode(OS1, OS2 9/125)||
Multimode (OM1 50/125, OM2 62.5/125,
OM3 50/125, OM4 50/125)
|Insertion Loss||≤ 0.2dB (Typical ≤0.1dB)||≤ 0.2dB|
|Return Loss||≥ -45dB||≥ -50dB||≥ -60 dB||N/A|
|Diameter||Φ0.9, Φ2.0, Φ3.0mm|
|Vibration||≤ 0.2dB (5~50Hz, 1.5mm Amplitude)|
|Thermal Cycle||≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)|
|Radius of Curvature||5 ~ 30 mm||5 ~ 12 mm|
|Apex Offset||≤ 70 um|
|Fiber Spherical Height||-125 to +100 um|
|Angular Error||N/A||8° ± 0.5°|
How to order Optical Fiber Patch Cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
Optical Fiber Patch Cord Connector type:
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
