MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter

MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter

  • MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter
  • MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter
MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter
Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SC -SC ( LC ,ST ,FC ,etc )
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 5-10 working days after received payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 pcs /day
Contact Now
Detailed Product Description
Connector: SC-SC (SC-LC , LC-LC ,ST-LC ,ST-SC )any Connector Polish: PC / UPC
Fiber Count: Duplex Insertion Loss: ≤ 0.3dB
Fiber Type: Simplex And Duplex, G652D, G655, Anything, SM Or MM Insertion Loss: ≤0.3dB, < 0.2dB, <=3.0 DB
Material: PVC, LSZH



fiber optic patch cord name

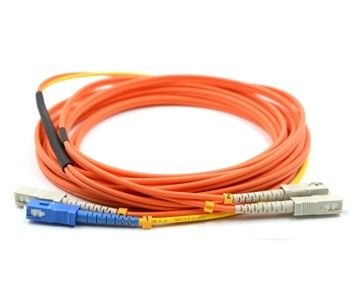

MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter



How the Mode Conditioning Cable Works


The need for this conditioning fiber optic patch cord is due to the single-mode launch nature of the-LX or long-wave(1300nm) transceiver modules used for Gigabit Ethernet.

Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuse the receiver at the other end of the fiber.



In that case, a mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber. This offset point creates a launch that is similar to typical multimode LED launches. (see diagram below)



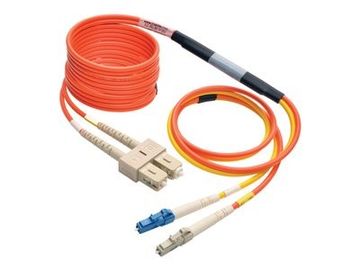

MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter 0





fiber optic patch cord Technical Parameter





Parameter Specification
Insertion Loss Light Source Transmission Direction Testing Wavelength Insertion Loss
D→B 850nm, 1,300nm Max .≤ 0.30dB
B→D 850nm, 1,300nm Max .≤ 0.30dB
C→A 850nm, 1,300nm ≤ 15.0dB(50/125um);
≤ 18.0dB(62.5/125um)

A→C 850nm, 1,300nm Max .≤ 0.30dB
C→A 1,310nm, 1,550nm ≤ 2.10dB(50/125um);
≤ 2.60dB(62.5/125um)

Return Loss SM APC≥60.0dB; SM UPC≥50.0dB MM PC≥35.0dB
Durability 1,000 mating, typical≤0.20dB
Operating Temp -20 to +70
Storage Temp -40 to +85







MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter 1
