|Place of Origin:||Shenzhen,China|
|Brand Name:||New Light|
|Certification:||CE , ISO , RoHS|
|Model Number:||MPO / MTP - MPO / MTP|
|Minimum Order Quantity:||negotiation|
|Price:||can be negotiated|
|Packaging Details:||OPP bag + carton box|
|Delivery Time:||2-7 working days ( according to your quantity )|
|Payment Terms:||T/T, Western Union, MoneyGram , paypal|
|Supply Ability:||500 pcs per day|
|Name:||MPO MTP Cable||Mode Type:||OM4|
|Delivery Time:||2-7 Working Days After Received Deposit||Production Ability:||500 Pcs / Day|
|Payment Term:||T/T , 30% Deposit In Advance||Connector:||MPO,MTP|
|Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
mpo fiber cable,
mpo to mpo cable

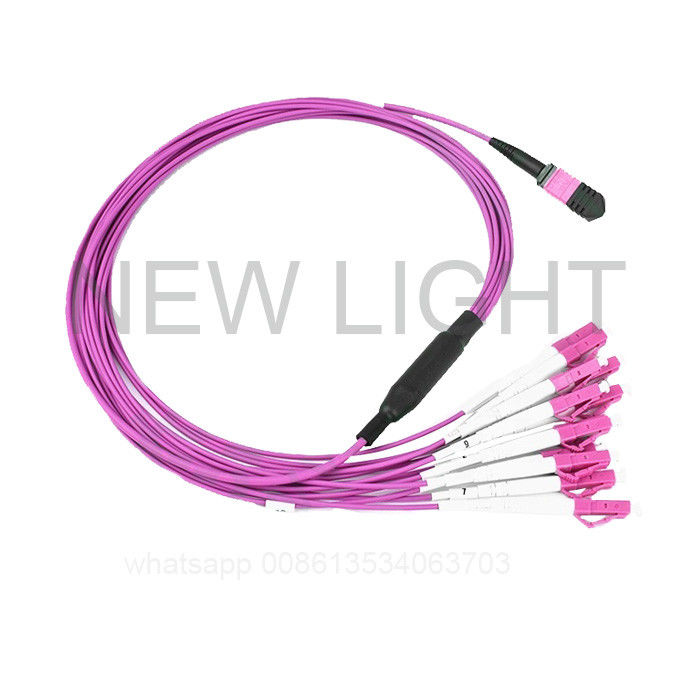

OS2 OM3 OM4 MTP/MPO Fiber Optic Cables for 100 Gigabit Ethernet
Take advantage of the most innovative fiber optic technology to-date. MTP brand multi-fiber MPO connectors help you get more done with less cable clutter. From 12 to 288 fiber strands, we get you the right solution to tackle a wide variety of applications. Whatever your MTP fiber optic cable needs may be .
Quick MTP premium trunk cable assemblies are made with the highest quality cable and components. We start with genuine MTP connectors from US Conect and precision terminate them to genuine Corning SMF 28e+ Singlemode Optical Fiber. Our MTP termination process includes an APC Polish and delivers uniform height and positioning for maximum physical contact for. This promotes consistently low insertion loss and excellent return loss characteristics across the entire 12 fiber interface. Our assemblies are made with plenum rated round mini-distribution cable for flexibility in all directions. We proudly manufacture all of our custom assemblies in the USA wtih strict quality control. Our assemblies come to you fully tested, ready to install, and are RoHS compliant.
The ANSI/TIA 568-3.D, (Optical Fiber Cabling and Components Standard, October 2016) defines three pinning or types for multi-fiber array systems: Method A, B and C. While one method is not preferred over another, the standard recommends that you choose a method in advance and use it throughout your installation. To maintain the proper polarity, there are three connectivity methods—A, B, C—that mirror the cable types. Each polarity method handles the transition from transmit to receive in a different manner.
1 . Method A, straight-through, is the most commonly used approach. It is pin 1 to pin 1 and uses Method A (key-up to key-down) MPO connectors.
2 . Method B is a crossover method (pin 1 to pin 12) and uses method B (key-up to key-up) MPO connectors.
3 . Method C uses flipped pairs (pin 1 to pin 2) and method A (key-up to key-down) MPO connectors. It does not offer a migration pathway to 40-/100-GbE.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
