SC/PC Multi Mode Duplex Optical Fiber Patch Cord with 3.0 mm Cable Diameter and Customizable Length

Brand Name:	New Light
Model Number:	LC /FC /SC/ST / MPO / MTP/ MU / MTRJ
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

SC / PC -SC / PC Multi Mode Duplex Optical Fiber Patch Cord 0.9 / 2.0 / 3.0 Mm

Fiber Type:

Mode:

Multi Mode

Core Type:

Duplex

Cable Diameter:

3.0 Mm

Cable Length:

Can Be Customized

Packing:

OPP Bag + Carton Box

Jacket Material:

PVC / LSZH

OEM/ODM:

Acceptable

Insertion Loss:

≤0.3dB

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

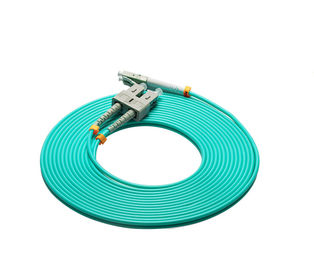

SC/PC-SC/PC Multi Mode Duplex Optical Fiber Patch Cord 0.9/2.0/3.0mm

Product Description

Fiber Optic Patch Cable, also known as fiber optic jumper or fiber optic patch cord, is a crucial component of optical networks. These cables feature identical or different connectors installed on each end and are primarily used for connecting computer workstations to outlets, patch panels, or optical cross-connect distribution centers.

Our comprehensive Fiber Optic Patch Cord series offers various lengths and connector options to meet diverse deployment requirements.

Technical Specifications

Parameter	Details
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3/OM4, OM5)
Jacket Materials	LSZH/PVC
Connector Type	SC/FC/LC/ST/MTRJ/MU/MPO/MTP/E2K
Ferrule Materials	Ceramic
Cable Dimension	0.9mm, 2.0mm, 3.0mm
Cable Color	Yellow \| Orange, Aqua, Magenta
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss	≤ 0.3dB
Return Loss	≥65dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature	-10°C to +70°C
Storage Temperature	-40°C to +85°C
Package	Polybag

Key Features

Low insertion loss
Good reproducibility
High return loss
Excellent mutual insert performance
Superior temperature stability

Customization Options

We offer custom-made pigtails with various configurations:

"Unjacketed" fiber pigtails for ODF unit installation
Multi-strand fiber pigtails without jacket for fusion splicing
Multi-strand fiber pigtails with fan-out for space-saving applications
Available in 2, 4, 6, 8, 12, 24, and 48 strand counts

All pigtails can be customized in any fiber type, length, connectors, and fiber counts to meet your specific requirements.

Applications

CATV systems
Active device termination
Telecommunication networks
Metro networks
Local Area Networks
Data processing networks
Test equipment
Premise installation
Wide Area Networks

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

2. What's your MOQ?

Minimum order quantity can be 1 piece, but we recommend larger quantities for better pricing.

3. What's the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

4. Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size. Contact us for shipping solutions.

5. How is your quality?

We follow IEC standards with imported production equipment and 100% testing before delivery.

6. What's your lead time?

Standard lead time is 2-3 working days for 5000 pieces. Urgent orders can be accommodated.

7. What's your warranty?

2-year warranty for non-artificial damage. Free repair for artificial damage (customer pays freight).

8. What's your packing?

International export packaging with optional logo printing available.

9. Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

10. Can I have a sample?

Free samples available for some products (customer pays freight). Sample charges apply for high-value items.

11. How can I order?

Send your requirements via mail or inquiry. We'll provide pricing and lead time, then proceed with payment and production.

12. What's your payment term?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.

Packing Reference
