3 Meters SC-SC Multi Mode Duplex Fiber Patch Cord OM2/OM3/OM4 50/125 2.0 Cable

Brand Name:	New Light
Model Number:	LC /FC /SC/ST / MPO / MTP/ MU / MTRJ
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC /FC /SC/ST / MPO / MTP/ MU / MTRJ

Fiber Type:

OM1 /OM2/OM3/OM4

Mode:

Multi Mode

Core Type:

Simplex / Duplex / 4 / 6/8/12/24/48 Core

Cable Diameter:

0.9/2.0/3.0 Mm

Cable Length:

Can Be Customized

Delivery Time:

2-7 Working Days After Receive Payment

Packing:

OPP Bag + Carton Box

Jacket Material:

PVC / LSZH

Warranty:

3 Years

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

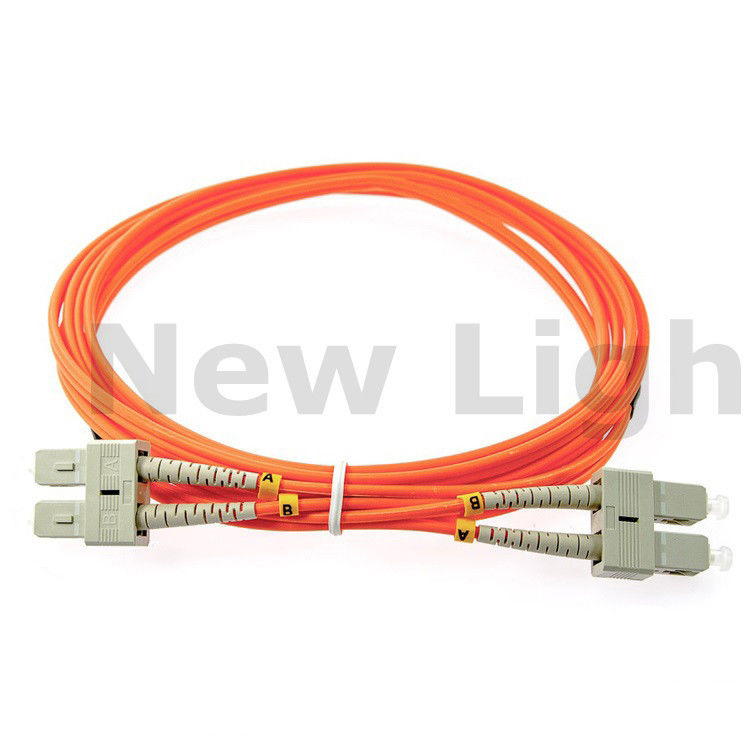

3 Meters SC - SC Multi Mode Fiber Patch Cord Duplex OM2 / OM3 / OM4 50/125 2.0 Cable

This optical fiber patch cord consists of a multi-mode fiber cord with SC connectors at both ends. Available in OM2, OM3, and OM4 grades with 50/125 micron fiber and 2.0mm outer diameter cable.

Product Features

Simplex, duplex, or multi-fiber assemblies available
Riser or Plenum rated, LSZH and RoHS compliant cables
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types including 9/125 single mode, 50/125 multimode, and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 mm outer diameter options
PC, UPC, and APC polish types available
100% geometry test and IEC cleaning test
OEM services available

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss (dB)	≤ 0.25dB(PC/UPC/APC) \| ≤ 0.3dB(PC/UPC)
Return Loss (dB)	≥50dB(PC/UPC) ≥60dB(APC) \| ≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

*All values specified are with connectors

Applications

CATV Active device termination Telecommunication networks Metro networks Local Area Networks Data processing networks Test equipment Premise installation Wide Area Networks

Available Connector Types

Configuration Options

Option Type	Available Choices
Connector Type	SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA
Cables	PVC/LSZH, OM1, OM2, OM3, OM4, Plenum(OFNP), Armored
Color	Yellow, gray, sky blue, orange, white, black

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide competitive pricing for bulk orders upon request with detailed specifications.

Can you quote FOB price?

Yes, but due to small size and weight, most shipments are via air couriers. We recommend EXW or CFR pricing for optimal freight solutions.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops with imported equipment. All products undergo 100% testing before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What's your warranty?

2-year warranty for non-artificial damage. For artificial damage, we provide free repair with customer responsible for freight costs.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer paying freight. Higher-value products require sample charges.

Packaging Reference
