SC UPC Single Mode 12 Fiber Optical Fiber Patch Cord with Customized Length and High Performance

Brand Name:	New Light
Model Number:	LC /FC /SC/ST / MPO / MTP/ MU / MTRJ
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC/UPC ( Can Be Customized )

Fiber Type:

G652D / G657A1/ G657A2 / G655

Mode:

Single Mode

Fiber Count:

12 Core

Cable Diameter:

0.9/2.0/3.0 Mm

Cable Length:

Can Be Customized

Packing:

OPP Bag + Carton Box

Jacket Material:

PVC / LSZH

Cable Color:

Yellow

Length:

Can Be Customized

Product Name:

SC UPC Single Mode Fan Out Optical Fiber Patch Cord 12 Fiber Customized Length

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

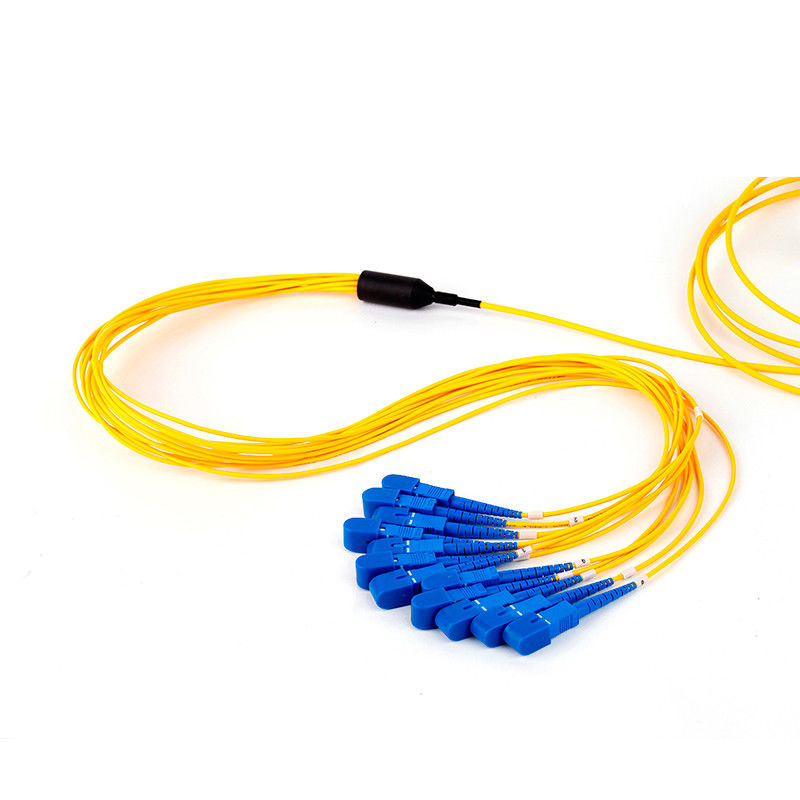

SC UPC Single Mode Fan Out Optical Fiber Patch Cord - 12 Fiber Customized Length

High-performance optical fiber patch cord designed for reliable data transmission in industrial and telecommunications applications.

Product Features

Stable and high-quality construction
Compliant with IEC, JIS, and Bellcore international standards
High performance with cost-effective pricing
Mass production capability with flexible customization options
Custom assemblies available upon request
OEM manufacturing services available

Product Specifications

Available in all connector styles
Multiple cable colors available upon request
Fiber types: OS1 (9/125μm), OM1 (62.5/125μm), OM2 (50/125μm), and OM3 (50/125μm)
Samples available for evaluation
Custom lengths available
Jacket materials: PVC (Riser standard), LSZH & Plenum available
Cable types: G655 & G657 available

Technical Data Sheet

Parameter	Singlemode (OS1, OS2 9/125)	Multimode (OM1 50/125, OM2 62.5/125, OM3 50/125, OM4 50/125)
Polishing	PC \| UPC \| APC	PC
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ -45dB \| ≥ -50dB \| ≥ -60 dB	N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

Polishing Parameter	PC	APC
Radius of Curvature	5 ~ 30 mm	5 ~ 12 mm
Apex Offset	≤ 70 μm
Fiber Spherical Height	-125 to +100 μm
Angular Error	N/A	8° ± 0.5°

Additional Information

0.9 / 1.8 / 2.0 / 3.0 mm outer diameter fiber optic cables
PC, UPC, and APC polish types available
Professional packaging with competitive pricing and fast delivery
100% geometry test and IEC cleaning test available
OEM services available

Applications

CATV systems
Active device termination
Telecommunication networks
Metro networks
Local Area Networks (LAN)
Data processing networks
Test equipment
Premise installation
Wide Area Networks (WAN)

Available Options

Connector types: SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA, and more
Cables: PVC/LSZH, OM1, OM2, OM3, OM4, Plenum(OFNP), Armored
Colors: Yellow, gray, sky blue, orange, white, black, and more

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: Customized to your requirements

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we don't recommend ordering single units as the cost per unit will be higher. Larger quantities receive more competitive pricing.

What are your prices?

Pricing depends on quantity. After you provide your quantity requirements, we will offer our best pricing. Larger quantities receive more competitive prices.

Can you quote FOB prices?

Yes, but due to the small size and weight of our products, most shipments are delivered by air (DHL, TNT, UPS, FEDEX, etc.). We recommend providing your specifications and quantity for a complete price including freight. For large quantities, we can provide sea freight options. EXW or CFR pricing is typically more suitable.

How is your quality?

Our production follows IEC and European standards in nearly dust-free workshops. We use imported production and quality control equipment, with 100% testing before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are available from stock, and we can accommodate urgent orders.

What is your warranty?

Patch cords include a 2-year warranty from delivery date for non-artificial damage. For artificial damage, we can repair free of charge, but shipping costs are the customer's responsibility.

What is your packaging?

We use international export packaging and can print your logo on the packaging upon request.

Can you do OEM/ODM?

Yes, we are a manufacturer and accept OEM/ODM orders. We can sign confidentiality agreements.

Can I get a sample?

For adaptors, attenuators, patch cords, and pigtails, we can provide free samples with shipping paid by the customer. For higher-value products, sample charges and shipping are required upfront, with sample charges refunded upon order placement.

How do I order?

Contact us with product name, specifications, quantity, and shipping address
We provide pricing and lead time based on your requirements
Upon acceptance, we issue a Proforma Invoice
Production begins after payment receipt
We confirm shipping details and provide tracking after delivery

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
