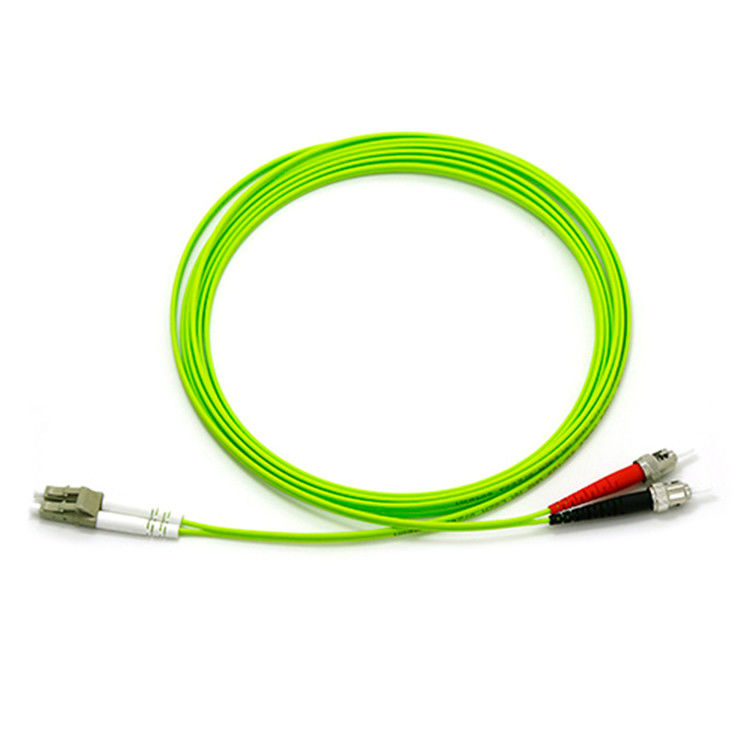

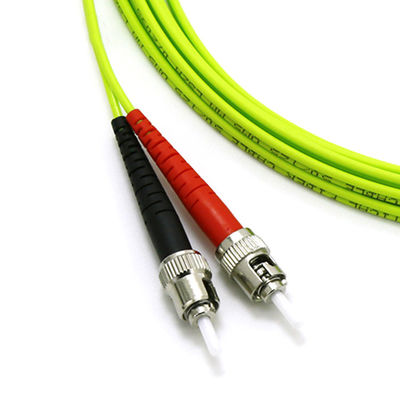

OM5 LSZH Multimode Duplex Fiber Optic Patch Cord with 3.0mm Diameter for All Connector Styles

Brand Name:	New Light
Model Number:	LC-ST
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC/PC - ST /PC

Cable Type:

OM5 -600 (50/125 )

Cable Diameter:

3.0mm

Jacket Material:

PVC / LSZH

Mode Type:

Multi Mode

Company Type:

Manufacturer

Delibery Time:

2-7 Working Days (after Receive Payment )

Warranty:

3 Year After Delivery

OEM/ODM:

Acceptable

Wave Length:

850/953/1300

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

OM5 LSZH / PVC Multimode Duplex Fiber Optic Cable

High-performance duplex fiber optic patch cords compatible with all connector styles, available in various configurations to meet diverse networking requirements.

Product Specifications

Available in all standard connector styles
Multiple cable colors available upon request
Fiber types: OS1 (9/125μm), OM1 (62.5/125μm), OM2 (50/125μm), OM3 (50/125μm), OM4 (50/125μm), OM5 (50/125μm)
Custom lengths available upon request
Jacket options: PVC (Riser), LSZH, and Plenum
Cable types: G652D, G657A1, G657A2, G655

Key Features

Stable and high-quality performance
Compliant with IEC, JIS, and Bellcore international standards
Cost-effective high-performance solution
Mass production capability with flexible customization
Custom assemblies and OEM services available
Three wavelength support: 850nm, 953nm, 1300nm

Technical Data Sheet

Mode	Singlemode (OS1, OS2 9/125)	Multimode (OM1, OM2, OM3, OM4, OM5 50/125)
Polishing	PC \| UPC \| APC \| PC	≤ 0.2dB
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ -45dB \| ≥ -50dB \| ≥ -60 dB \| N/A	N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

Polishing	PC	APC
Radius of Curvature	5 ~ 30 mm	5 ~ 12 mm
Apex Offset	≤ 70 μm
Fiber Spherical Height	-125 to +100 μm
Angular Error	N/A	8° ± 0.5°

Connector Types

Payment Terms & Delivery Information

Payment Methods: T/T, L/C, PayPal, Western Union, MoneyGram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard packaging (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment receipt
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, FedEx) or by sea (according to requirements)
