|Place of Origin:||ShenZhen , China|
|Brand Name:||New Light|
|Certification:||CE , ISO , RoHS|
|Model Number:||SC/ PC|
|Minimum Order Quantity:||1 pcs|
|Price:||can be negotiated|
|Packaging Details:||OPP bag + carton box|
|Delivery Time:||2-7 working days after receive payment|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram , paypal|
|Supply Ability:||12000 pcs / day|
|Products Name:||SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable||Connector Type:||SC( Can Be ST , FC , LC , MPO , MTRJ , MU )|
|Mode Type:||Single Mode||Cable Color:||According To Your Request|
|Cable Diameter:||0.9mm||Cable Length:||2 M (can Be Customized )|
|Insertion Loss:||≤ 0.3 DB||Return Loss:||≥ 50dB|
|Delivery Time:||2-7 Working Days||Payment Term:||30% Deposit In Advance , 70% Balance Paid Before Delivery|

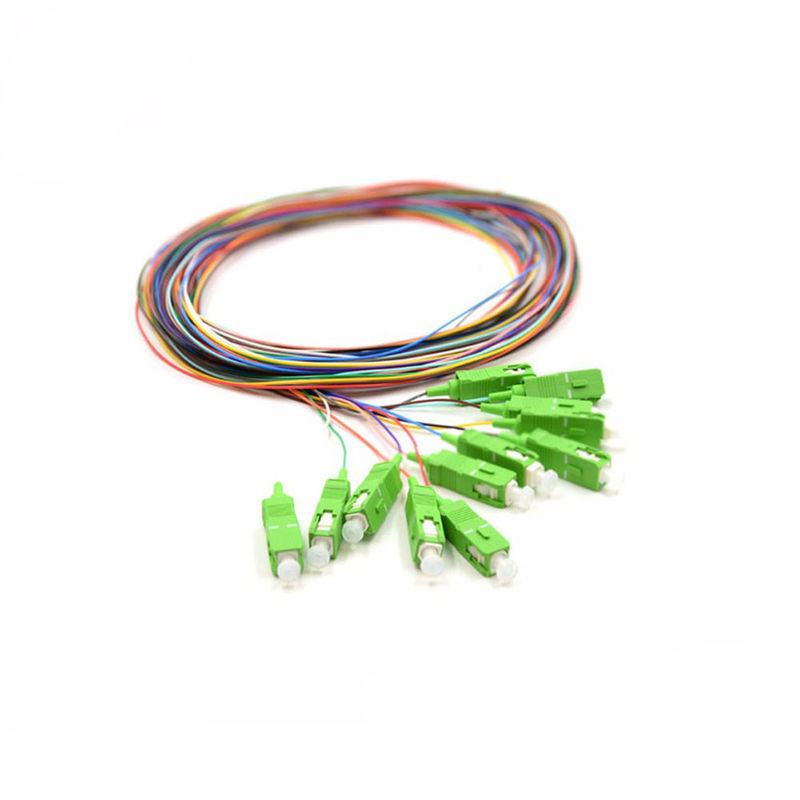

SC / APC optic fiber pigtail 12 color 0.9 mm 2 M optic fiber jumping cable
12 fibers/Colored pigtail
It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, and E2000etc.
The cable could be G652D, G657A1, G657A2 ,G655, OM1, OM2, OM3, OM4 etc.
The cable size could be 0.25,0.9,
There are 12 colors for your option.
Both 250um and 900um is same colored, easy to identify and make right splice.
Tight buffer, semi-tight buffer. Loose buffer are available.

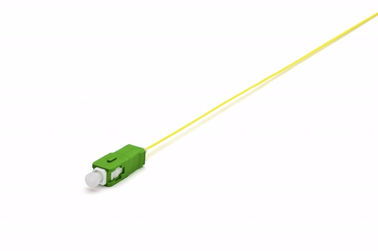

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
|Fiber count||12||Fiber Mode||9/125μm|
|Connector Type1||SC/UPC||Connector Type2||Unterminated|
|Fiber Mode||SM||Breakout length||0.5m|
|Operating temperature||-40~75°C||Storage temperature||-45~85°C|
Geometric Specification (only for 3D interferometer tested)
|Apex Offset||≤50 um|
|Fiber Spherical Height||+/- 50 nm|
|Angular Offset||8°± 0.2°|
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced productionequipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
