4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color

4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color
4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color
4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color

Large Image :  4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO / MTP - MPO / MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days ( according to your quantity )
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 500 pcs per day

4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color

Description
Connector Type: MPO / MTP Material: LSZH
Mode Type: Multi Mode Core Type: 12 Core
Cable Color: Aqua Length: Can Be Customized According To Your Requirements
Certificate: CE , ISO , RoHS Delivery Time: 2-7 Working Days After Received Deposit
Production Ability: 500 Pcs / Day Payment Term: T/T , 30% Deposit In Advance
High Light:

mpo to mpo cable

,

mpo fanout cable





Product Description

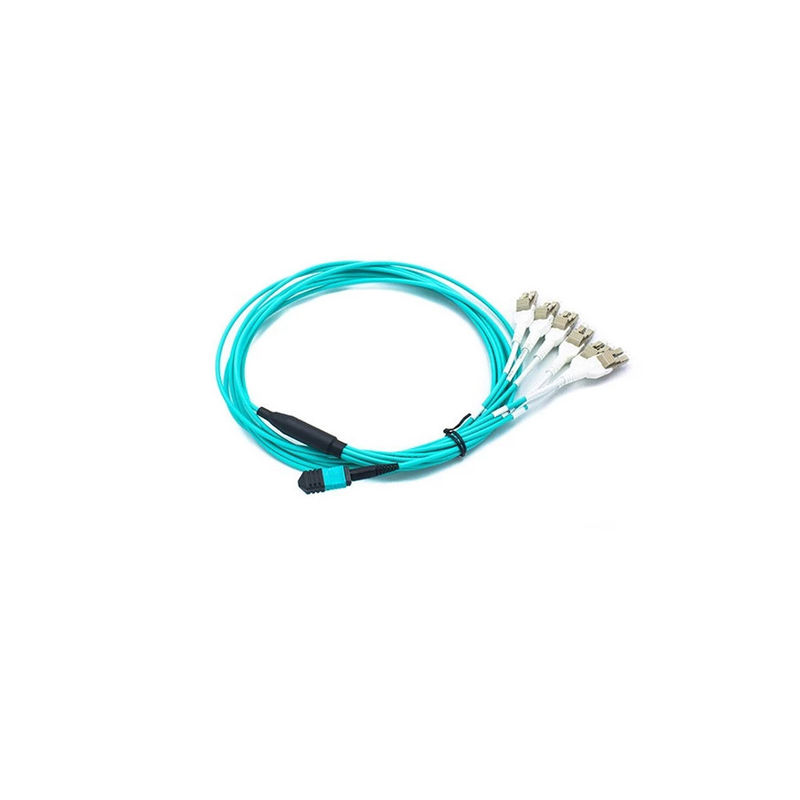

MPO/MTP Fanout Patch Cable , MPO/MTP to 8 x LC (4 Duplex) OM3 Breakout Fiber Optic Cable - Aqua



  • This 5 meter (16.5ft) high-quality MPO to 8x LC(4 Duplex) Fanout/breakout Cable, MPO Connector Female without PIN.
  • MMF(50/125um), OM3 10G standard, LSZH -8 Core Fiber
  • Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources(Low-smoke-zero-halogen Rated).
  • Insertion loss: 35dB, Insert- pull test: 500times<0.5 dB.
  • For QSFP+ Transceivers Link, Contact us for OEM or Custom.





Technical Parameter



Item Technical Parameters
Connector MPO (F or M) MPO (F or M)
Operation Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Insertion Loss

SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);

MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);

Return Loss SM:≥60dB; MM:≥35dB
The MPO end type Male: with guide pin; Female: without guide pin
Fiber count 8,12&24 MT fiber
Connector type of the other end MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable









The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.





Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.





4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 0







Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.



4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 1







Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.



4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 2







Using  temperature



-40° ~ +80°





Application :



Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication







Pakcing :



We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged  when delivery .



4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 3







Delivery :



We can delivery it by air and by sea . it is according to your quantity and requirements .



4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 4





Payment :



Payment term : T/T , L/C ,  PAYPAL / WESTERN UNION / MONEYGRAM  . 30% deposit in advance . balance paid before delivery  .



Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR



4 Duplex MPO MTP Cable , Customized Length Breakout Fiber Optic Cable With Aqua Color 5





More products :



We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc .  If you need more products or catalogue , you can feel free to contact us
