Single Mode G652D Conditioning Multi Mode OM1 62.5/125 Fiber Optic Patch Cord with ≤ 0.3dB Insertion Loss and ST-LC Connector

Brand Name:	New Light
Model Number:	ST-LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

ST-LC

Polish:

PC / UPC

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Production Methed:

Single Mode Conditioning Multi Mode

Fiber Type:

Simplex And Duplex, G652D, G655, Anything, SM Or MM

Application:

FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base Station, For ODF Internal Link, For Room Equipment Internal Link, FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

3M, Customized, 1m 2m 3m Or Customized, Any Length Is Customizable, 40M

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

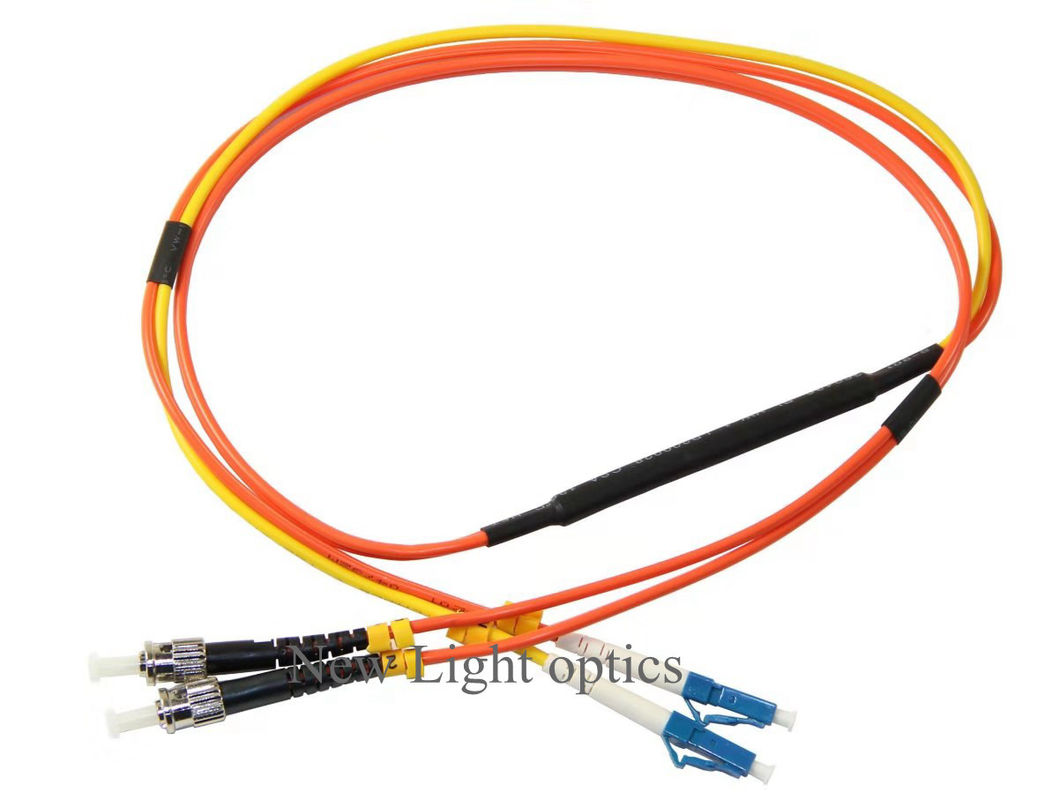

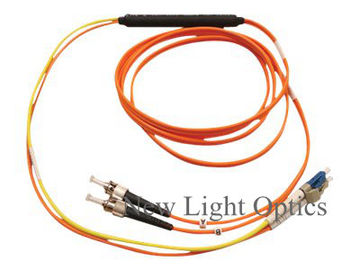

Single Mode Fiber Patch Cord Types (MCP) G652D Conditioning Multimode OM1 62.5/125

Fiber Optic Patch Cord Description

Mode Conditioning Patch cord (MCP), also known as Gigabit Launch Patch cord, is used in longwave/long haul (LX/LH) Gigabit Interface Converter (GBICs) with multimode fiber.

Available configurations:

Connectors: Customizable to requirements
Length: Customizable to request
Multi-mode cable options: 62.5/125µm or 50/125µm fiber
Single-mode options: G652D, G657A1, G657A2, etc.

Fiber Optic Patch Cord Application

Without using MCP, multiple signals are generated when a singlemode laser launches into the center of a multimode fiber. This results in pulse broadening or Differential Mode Delay (DMD) effects which degrade the modal bandwidth of fiber cable and limit the link span (distance between transmitter and receiver) for operating Gigabit applications.

MCP provides an offset single mode to multimode fiber connector point that eliminates the effect of DMD by launching the single mode laser into multimode core at a specified offset.

Technical Parameters

Parameter	Specification
Insertion Loss (Light Source Transmission Direction)	D→B: 850nm, 1,300nm - Max. ≤0.30dB B→D: 850nm, 1,300nm - Max. ≤0.30dB C→A: 850nm, 1,300nm - ≤15.0dB(50/125µm); ≤18.0dB(62.5/125µm) A→C: 850nm, 1,300nm - Max. ≤0.30dB C→A: 1,310nm, 1,550nm - ≤2.10dB(50/125µm); ≤2.60dB(62.5/125µm)
Return Loss	SM APC≥60.0dB; SM UPC≥50.0dB; MM PC≥35.0dB
Durability	1,000 mating, typical≤0.20dB
Operating Temperature	-20℃ to +70℃
Storage Temperature	-40℃ to +85℃

Frequently Asked Questions

1. Are you manufacturer?

Yes, we are manufacturer in Shenzhen, China.

2. What's your MOQ?

MOQ can be 1 pc, but we don't suggest ordering just 1 pc as the cost will be higher, resulting in a higher price than your budget.

3. What's the price?

Price depends on quantity. After you inform us of your quantity, we will offer our best price. Large quantities receive very competitive pricing.

4. Can you quote FOB price?

Yes, but due to small size and weight, most deliveries are by air (DHL, TNT, UPS, FEDEX, etc.). For large quantities with dozens of carton boxes, we can provide sea freight options. EXW price or CFR price may be better solutions.

5. How is your quality?

Our production follows IEC and European standards in near dust-free workshops with imported production and quality control equipment. All products are 100% tested before delivery.

6. What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pcs. Regular products are in stock and we can handle urgent orders.

7. What's your warranty?

Patch cords have 2 years warranty for non-artificial damage. For artificial damage, we repair for free but freight is paid by customer.

8. What's your packing?

We use international export packaging and can print your logo on the packing.

9. Can you do OEM/ODM?

Yes, we can sign Confidentiality Agreements for OEM/ODM.

10. Can I have a sample?

For adaptors, attenuators, patch cords, and pigtails, we provide free samples with freight prepaid by customer. For high-value products, sample charge and freight must be prepaid but will be returned after order placement.

11. How can I order?

Order process:

Send inquiry with product name, specifications, quantity, and shipping address
We provide best price and lead time
Upon acceptance, we issue Proforma Invoice
Production begins after payment
We confirm shipping information and provide tracking number

12. What's your payment term?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
