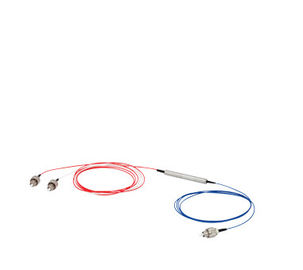

1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode

1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode
1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode 1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode

Large Image :  1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: FC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: can be negotiated
Packaging Details: standard export package
Delivery Time: 7-15 working days (according to your quantity )
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100,000 pcs / month

1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode

Description
Product Name: 1550nm Fiber Circulators, Or 1310 Nm Optical Fiber Circulator Single Mode Connector Type: FC PC/APC Connectors
Mode Type: SM PDL: ≤0.2dB
Return Loss: ≥ 50dB Cross Talk: ≥ 45dB
Fiber Type: Hi1060 Port Num: 3 Ports
Wavelength Range: 1280 - 1340 Nm Or 1280 - 1400 Nm Package Dimension: 34x8.4x8.4(P1) Mm
High Light:

single mode fiber splitter

,

fiber optic cable splitter


Optical Fiber Circulator Product Name


1550nm Fiber Circulators, or 1310 nm Optical Fiber Circulator single mode


Optical Fiber Circulator Description



What is Optical Fiber Circulator



The function of an optical Fiber circulator is similar to that of a microwave circulator.





It is a three or more ports multiport device. Lightwave is transmitted from one port to the next sequential port with a minimum loss but is blocked from one port to the previous port.



Optical circulators were first used in telecom systems. However, with the ready availability of low-cost and high-performance circulators, they are also used in sensing and imaging fields.

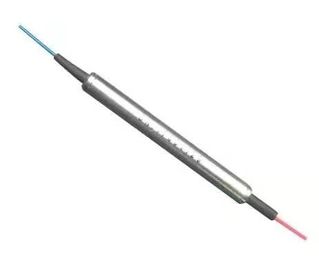

 1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode 0
An optical circulator is a three-port device that allows light to travel in only one direction.

A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.

Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.


Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free


Optical Fiber Circulator Applications

  • Add-Drop Multiplexing
  • Fiber Sensors
  • Bidirectional Pumping
  • Bidirectional Signal Transmission Systems
  • Coupling In-Line Chromatic Dispersion Compensation Devices



Optical Fiber Circulator Specifications

Item Unit Parameters
Operating wavelength nm 1064
Bandwidth nm ±5 ±10 ±20 ±30
Isolation dB ≥25 ≥23 ≥20 ≥20
Insertion Loss@Band,23℃ dB ≤2.1 ≤2.6 ≤3.2 ≤3.8
PDL dB ≤0.2
Return Loss dB ≥ 50
Cross Talk dB ≥ 45
PDL dB ≤ 0.1
Maximum Optical Power mW ≤ 300
Fiber Type / Hi1060
Operation Temperature 0C 0~50
Storage Temperature 0C -40~85
Package Dimension mm 34x8.4x8.4(P1)

Note:

  • All the specifications are based on the devices without connector, and guaranteed over wavelength, polarization and temperature.

2. Specifications are subject to change without notice.


Optical Fiber Circulator Dimension(mm)

1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode 1

Optical Fiber CirculatorOrdering Information(Example:CIR-12210)


CIR-
  Wavelength Bandwidth Fiber Type Fiber Length Connector Type

1.1064nm
2.Others



1.±5nm
2.±10nm
3.±20nm
4.±30nm

1.250μm fiber
2.900μm fiber
3. Others

1.0.5 +/- 0.1 m
2. 1.0 +/- 0.1 m
3. Others

0.No Connector
1. FC/UPC
2. FC/APC
3. SC/UPC
4. SC/APC
5. LC/PC
6. MU/PC
7. Others





1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode 2
1550nm Fiber Circulators , Or 1310 Nm Optical Fiber Circulator Single Mode 3
