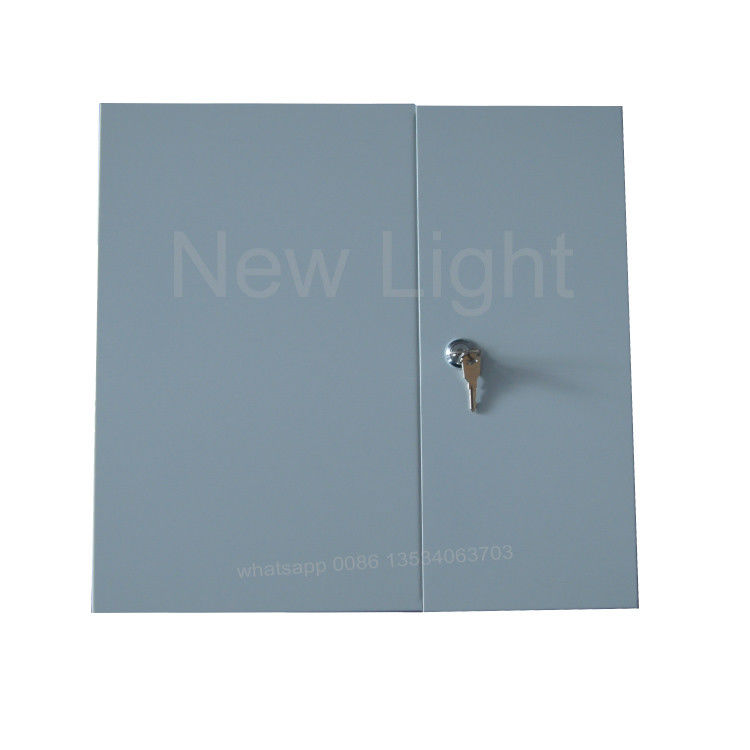

Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box

Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box

  • Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box
  • Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box
  • Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box
Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box
Product Details:
Place of Origin: China
Brand Name: Newlight
Certification: ISO9001,ROSH
Model Number: NL013
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-10 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 2000 Nos per month
Contact Now
Detailed Product Description
Manufacturers Name: NewLight Country Of Origin: China
Material: Cold-roll Steel Splicing Unit: 12fiber
Adapters: FC, SC, ST, LC Dimension: 30*30*8.5cm
Fiber Quantity: 10 /12/24 Type: Indoor Wall-mount
Aplication: Management Fiber
High Light:

odf optical fiber distribution frame

,

odf fiber optic patch panel

Outdoor fiber optic splitter box, wall mount 1x16 splitter fiber optic distribution box





Description



FTTH mode of fiber opitc distribution box is a newly developed by our company for application of FTTH.The box is light and compact, especially suitable for protective connection of fiber calbes and pigtials in FTTH.


Features:
Shell material for high quality cold-rolled steel sheet plastic-sprayed surface treatment, beautiful shape
The double structure design, the upper for light optical device wiring layer, and the lower layer for fiber splicing, internal go fine routing clear, easy to operate
Capacity and 16 cores and 32 cores, the standard installation SC adapter, other adepter type you can order
The optical light module uses a modular design of the upper, have very strong interchangeability and universal
Clearly marked, each core of optical fiber in and distribution are clearly marked
The opening angle is not less than 180 DHS, outdoor hang wall or hang lever installation
Has reliable cable fixed, stripping, and protection grounding system. Ensure that optical fiber, cable in any position bend curvature radius greater than 30mm
Outdoor type into cable under a fine; indoor type up and down into the cable, and the upper and lower out fine
With temporary tail fiber storage area

Application:
Widely used in FTTX access network;
Telecommunication Networks;
CATV networks;
Data communications networks;
Local Area Networks.



Environment conditions:

1) Working temperature: -25°C - 55°C
2) Relative humidity: ≤85% (30°C)
3) Air pressure: 70 - 106KPa
4) Standard working wavelength: 850, 1,310, 1,550nm
5) Connector loss: ≤0.5dB
6) Back wave loss: PC≥40dB, UPC≥50dB,APC≥60dB
7) Resistance to voltage between high-voltage protection ground and frame: ≥3kV (DC) / 1min no puncture or arc
8) Insulation resistance between high-voltage protection ground and frame: ≥20,000MΩ / 500V DC







Outdoor Fiber Optic Splitter Box , Wall Mount 1x16 Splitter Fiber Optic Distribution Box 0



Features:


1. With cold-roll steel box, splicing unit, distribution unit and panel
2. Various panel plate to fit different adapter interface
3. Adapters can be installed: FC, SC, ST, LC
4. Suitable for single fiber and ribbon & bundle fiber cables
5. Special design ensures the excess fiber cords and pigtails in good order
6. No interval and easy for management and operation



Specificate

Mode fiber quantity dimension weight
ODF-24B 24 30*30*8.5cm 5





FQA



1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China



2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



EXW price or CFR price will be better . You can contact us for more solution if you need .



5. Q: How is your quality ?

A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



All the products are 100% test before delivery .



6. Q : Whats your lead time ?

A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



7. Q : Whats your warranty ?

A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



8. Q : Whats your packing ?

A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



9. Q: Can you do OEM/ODM ?

A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



10. Q: Can I have a sample ?

A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



11. Q: How can I order ?

A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

3. When you accept the quotation , we will make Profoma Invoice with our bank account .

4. We will arrange the production for you after we received payment .

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

6. We will try our best to meet your requirements for long-term cooperation .



12. Q: What your payment term ?

A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
