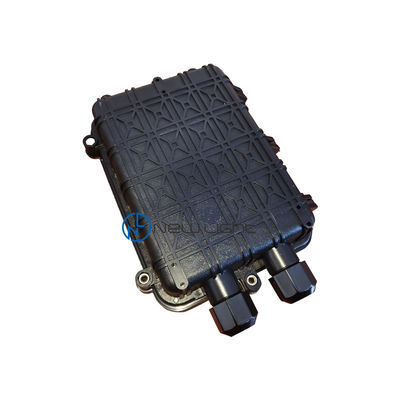

IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box

IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box

  • IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box
  • IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box
  • IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box
IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box
Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: ISO,RoHS , CE
Model Number: 1 in 1 out
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-10 working days after received payment
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Product Name: Fiber Optic Cable Junction Box Material: ABS+PC
Installation Type: Pole-moungting / Direct Buried Fiber Count: 48core
Material: Alimunium Alloy/PC (Polycarbonate) Color: Black Joint Box
Max Capacity: 24 Core,96 Fibers,48 Core Type: Horizontal
High Light:

48core Fiber Optic Junction Box

,

IP68 Fiber Optic Junction Box

,

Polycarbonate Plastic Optic Splice Closure

IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box



Product Name of Plastic ABS+PC 12 to 48 Core fiber optic cable junction box



Plastic ABS+PC 12 to 48 Core fiber optic cable junction box is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.





Fiber Optic Joint Closure Information of Plastic ABS+PC 12 to 48 Core fiber optic cable junction box :

Mode NO SC-HC048-01 color Black
Capacity 48 core Protection level IP68
Material PC , ABS+PC,PP Inlet/outlet 1+1
Dimension 283*198*90 Sealing Method for Inlets Screw mechanical
Inlet cable port Ф14-Ф20 Outlet cable port Ф14-Ф20


The dimension diagram:(mm)

IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box 0

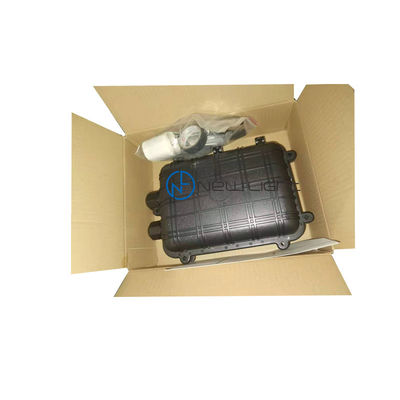

Fiber Optic Joint Closure Packing Details of Plastic ABS+PC 12 to 48 Core fiber optic cable junction box



Packing Packed by Carton.Then covered with waterproof membrane.
Normal splice closure factory quantity Standard quantity is 8 or 10 sets with a tolerance of 5% or other required.
Carton Weight Approx. 24kg per carton.Carton Size:515*425*575mm



3 Features of Plastic ABS+PC 12 to 48 Core fiber optic cable junction box


3.1 The body is made of high quality engineering plastic with good strength;
3.2 With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.

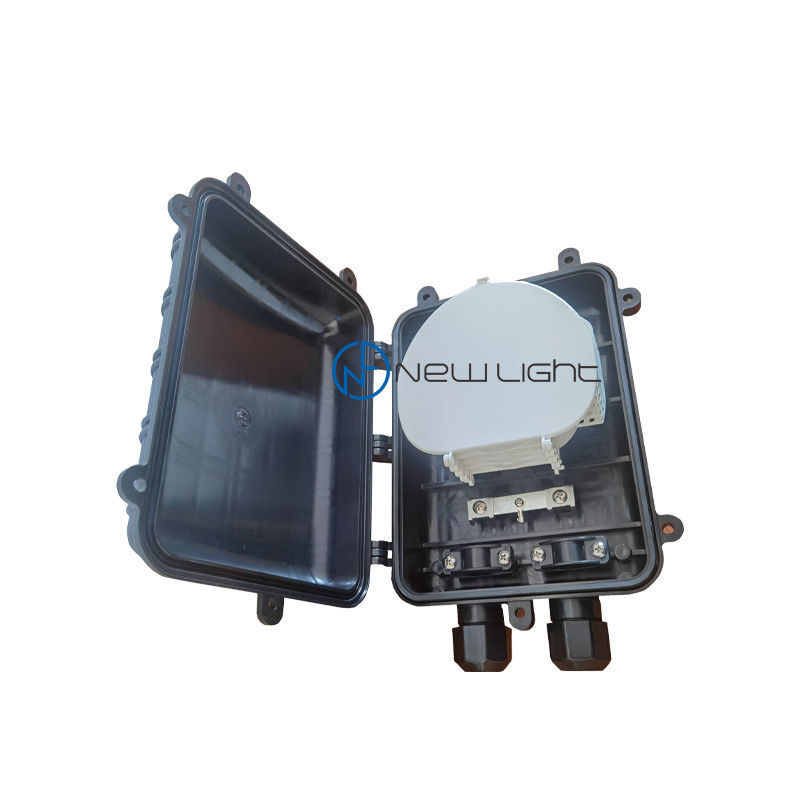

3.3 Be equipped with 2 splice trays (each capacity is 24 cores) (Pic#4 for details);
3.4 Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.



IP68 pole-moungting ABS + PC 12 / 48core Fiber Optic Junction Box 1



4 Package Information of fiber optic cable junction box


4.1 Plastic bag size:300*300mm
4.2 Inner box with single corrugated size: 290*205*100mm
4.3 Carton with double corrugated size:595*425*515mm(20PCS/Box)
4.4 Weight per carton:23.7KG







FQA :



1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China



2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



EXW price or CFR price will be better . You can contact us for more solution if you need .



5. Q: How is your quality ?

A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



All the products are 100% test before delivery .



6. Q : Whats your lead time ?

A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



7. Q : Whats your warranty ?

A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



8. Q : Whats your packing ?

A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



9. Q: Can you do OEM/ODM ?

A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



10. Q: Can I have a sample ?

A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



11. Q: How can I order ?

A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

3. When you accept the quotation , we will make Profoma Invoice with our bank account .

4. We will arrange the production for you after we received payment .

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

6. We will try our best to meet your requirements for long-term cooperation .



12. Q: What your payment term ?

A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
