Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss

Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss

  • Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss
  • Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss
Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss
Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO / MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days ( according to your quantity )
Payment Terms: T/T, Western Union, MoneyGram , paypal
Supply Ability: 500 pcs per day
Contact Now
Detailed Product Description
Connector Type: MPO / MTP Female Material: LSZH
Mode Type: Multi Mode Core Type: 16 Core
Cable Color: Green Cable Diameter: 3.0mm
Insertion Loss: ≤ 0.5 DB ( Low Insertion Loss Can Be ≤ 0.3dB) Return Loss: ≥25dB
Length: Can Be Customized OEM/ODM: Acceptable
Package: 1pcs /bag OPP Bag + Carton Box Cable Type: OM5 50/125
Wavelength: 850/1300nm
High Light:

mpo fiber cable

,

mpo to mpo cable

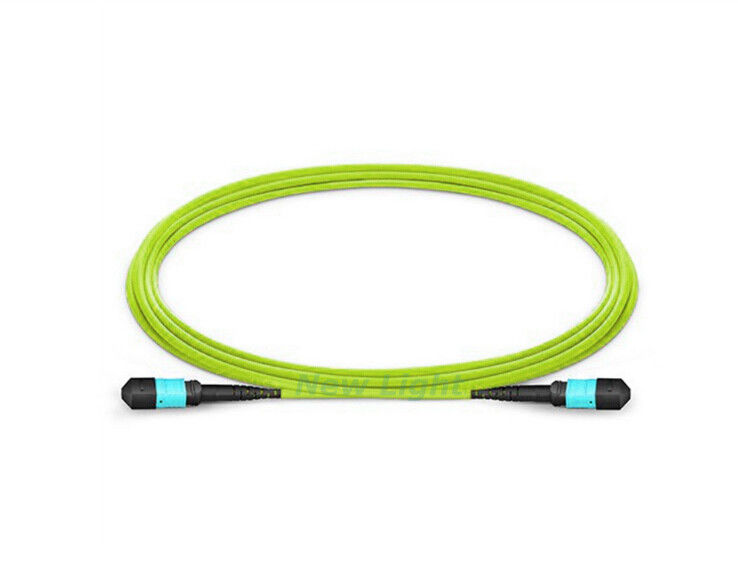

16 core MTP / MPO male OM5 50/125 LSZH 3.0mm green cable optical fiber patch cord



16 core MPO / MTP is a new type ,16-core MTP/MPO fiber assemblies to support 400G transmission. The assemblies are offered in single row 16-fiber  configurations to achieve the highest density physical contact for multi-fiber connectors in the market.



This high density trunk cable can directly couple into 16x25G active devices, which complied by TelcordiaGR-326 Core, TIA 604-18 (FOCIS 18) and IEC(61754-7-3) standards.





Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.



Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss 0



Features:

High Precision pins for fiber alignment.

UPC and APC available

Choices of different cable structure to cater for different installation needs

Available in SM (9/125), MM (50 or 62.5/125), OM3 , OM4 and OM5 fiber types

Available in 8/12/16/24/32 -fiber

Corning fiber is available for selection

Compliance with Telcordia GR-1435-CORE and RoHS





Technical Parameter



Parameter



products name   16 core MTP / MPO female OM5 50/125 LSZH 3.0mm green cable optical fiber patch cord
mode type  multi mode
cable count  16 core ( can be 4/8/12/16/24/32 core )
core type OM5 ( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color  Green ( can be customized according to your request )
cable diameter  3.0 ( can be 3.0 and customized diameter )
patch cord length  3 meter ( can be customized according to your request )
out jacket material  LSZH ( can be PVC or LSZH )
insertion loss  ≤ 0.5dB ( low insertion loss can be ≤ 0.35dB )
return loss  ≥25 dB
wave length  850/1300
core type  50/125um
connector type  female
connector color  Aqua / Magenta /beige are ok
ferrule material  plastic
operater temperature  -40~ +85℃
cable print  standard print ( can customized )
OEM/ODM  acceptable
warranty  3 years after delivery
Delivery time  2-15 working days ( according to your quantity )





Connector you can choose :



Multi Mode 16 Core MPO MTP Cable Female OM5 50/125 LSZH 3.0mm Low Insertion Loss 1





How to order



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
