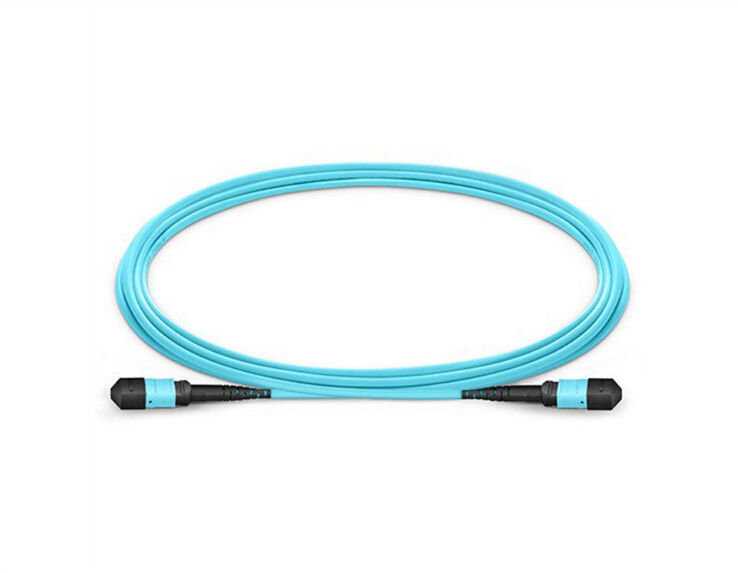

male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12 / 32 core

male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12 / 32 core

  • male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core
  • male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core
male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core
Product Details:
Place of Origin: Shenzhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC / FC / ST / LC / MPO / MTRJ / MU
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500 pcs per day
Contact Now
Detailed Product Description
Product Name: Male And Female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12 / 32 Core Material: LSZH
Fiber Type: OM3 50/125 Connector Type: MPO
Mode: Multi Mode Fiber Count: 12 Core
Cable Color: Aqua Cable Diameter: 3.0mm
Cable Length: As Your Requirement Method: A Type
Insertion Loss: ≤ 0.5dB Return Loss: ≥25dB
High Light:

mpo fiber cable

,

mpo fanout cable

Product Description



male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12 / 32 core



The MPO /MTP connector have male and female type  . male connector with PIN and female connectory without PIN . One female MPO should be connect with male MPO . so that they can connect together by PIN  .



MPO/MTP also have standard insertion loss and low insertion loss type , 8 / 12 / 24 core it the popular and normal type  . it can be MPO-MPO , MPO-LC ,etc .



Female



male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core 0



Male



.male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core 1



Technical Parameter



products name  male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12 / 32 core
mode type multi mode
cable count 12 core ( can be 4/8/12/16/24/32 core )
core type OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color Aqua ( can be customized according to your request )
cable diameter ( can be customized diameter )
patch cord length 5 meter ( can be customized according to your request )
out jacket material  LSZH ( can be PVC or LSZH )
insertion loss ≤ 0.5dB
return loss ≥25 dB
wave length 850/1300nm
core type 50/125um
connector type male
connector color Aqua
ferrule material plastic
operater temperature -40~ +85℃
cable print standard print ( can customized )
OEM/ODM acceptable
warranty 3 years after delivery
Delivery time 2-15 working days ( according to your quantity )






Features


· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber

Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.



male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core 2



male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core 3



male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core 4



More connector for reference

male and female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12  / 32 core 5



How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
