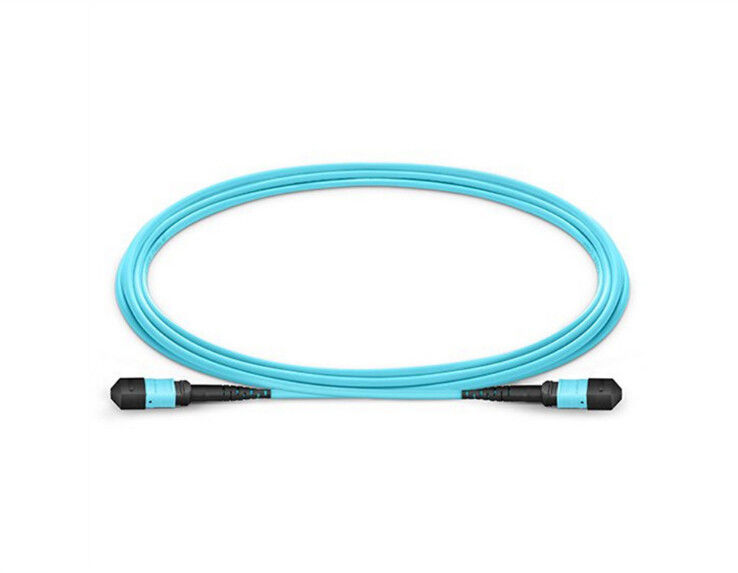

12 Core LSZH Material Multi Mode MPO MTP Cable Patch Cord for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	SC / FC / ST / LC / MPO / MTRJ / MU
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen , China

Certification:

CE , ISO , RoHS

Product Name:

Male And Female MPO-MPO Optic Fiber MPO MTP Cable Patch Cord 8 / 12 / 32 Core

Material:

Fiber Type:

OM3 50/125

Connector Type:

Mode:

Multi Mode

Fiber Count:

12 Core

Cable Color:

Cable Diameter:

3.0mm

Cable Length:

As Your Requirement

Method:

A Type

Insertion Loss:

≤ 0.5dB

Return Loss:

≥25dB

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

MPO-MPO Fiber Optic Patch Cord - Male & Female Connectors (8/12/32 Core)

High-performance MPO/MTP fiber optic patch cords designed for reliable data center and high-density connectivity applications.

Connector Types

MPO/MTP connectors are available in male (with pins) and female (without pins) configurations. Male and female connectors are designed to pair together, ensuring secure and precise alignment through the pin mechanism.

Standard & Low Insertion Loss Options

Available in both standard and low insertion loss variants. Popular configurations include 8, 12, and 24-core options with various connector combinations including MPO-MPO, MPO-LC, and more.

Visual Reference

Female MPO Connector

Male MPO Connector

Technical Specifications

Parameter	Specification
Product Name	Male and Female MPO-MPO Fiber Optic Patch Cord
Mode Type	Multi Mode
Cable Count	12 Core (Customizable: 4/8/12/16/24/32 core)
Core Type	OM3-300 (OM1/OM2/OM3-150/OM3-300/OM4/OM5)
Cable Color	Aqua (Custom colors available)
Cable Diameter	Customizable
Patch Cord Length	5 Meters (Custom lengths available)
Jacket Material	LSZH (PVC or LSZH options)
Insertion Loss	≤ 0.5dB
Return Loss	≥ 25 dB
Wavelength	850/1300nm
Core Size	50/125μm
Connector Type	Male
Connector Color	Aqua
Ferrule Material	Plastic
Operating Temperature	-40°C to +85°C
Cable Printing	Standard Print (Custom printing available)
OEM/ODM	Accepted
Warranty	3 Years After Delivery
Delivery Time	2-15 Working Days (Based on quantity)

Key Features

12-fiber and 24-fiber MPO/MTP connector standards
Compatible with OS1/2, OM2, OM3, and OM4 fiber types
Available with FC, LC, SC, ST, MU, and MTP interfaces
PC, UPC, and APC polishing types available
Multiple fiber counts: 12/24/36/48/72/96/144 fibers
100% factory tested for quality assurance
Heat-cured discrete connectors with ceramic ferrules and sleeves
Fan-out fibers from MPO/MTP connectors into simplex or duplex configurations
Customizable length, staggering, connector types, breakout styles, fiber counts, and labeling

MPO/MTP Polarity Technology

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional signal allocation for reliable connectivity.

Additional Connector Options

Ordering Information

Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
Cable Diameter: 0.9 / 2.0 / 3.0 mm (Custom diameters available)
Coating Material: PVC / LSZH
Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch Cord Length: Customized to your requirements

Contact for Custom Orders

WhatsApp: +8613534063703
